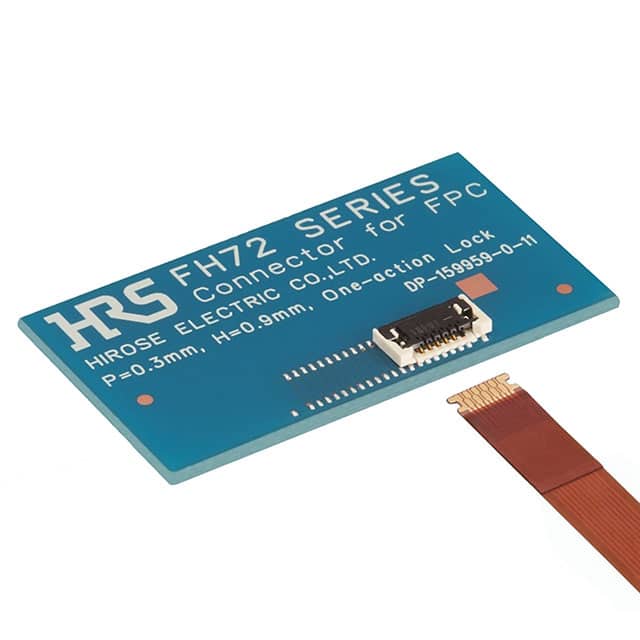

The FH72-21S-0.3SHW is a 21-position, 0.3mm pitch FPC (Flexible Printed Circuit) connector manufactured by Hirose Electric. It is designed for surface mount, right angle orientation, making it suitable for compact, low-profile interconnections. The connector uses a top contact type with a notched cable end, and features a flip lock actuator for secure cable retention.
Key specifications include a voltage rating of 30V, an operating temperature range of -55°C to 85°C, and a flammability rating of UL94 V-0. The housing is made of liquid crystal polymer (LCP), the actuator is polyamide (nylon), and the contacts are copper alloy with gold finish. The height above board is 0.88mm, and the supported FPC thickness is 0.20mm.
This connector is designed for high-density FPC applications where space is at a premium. The right angle mounting allows for cable routing parallel to the board, reducing overall height. The flip lock mechanism provides reliable mating without additional hardware.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.17 | $1.17 |
| 25+ | $1.02 | $1.02 |
| 100+ | $0.95 | $0.95 |
| 250+ | $0.89 | $0.89 |
| 6,000+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
21 positions.
0.30mm.
30V.
Surface mount, right angle.
-55°C to 85°C.
Flip lock.
Gold.
