| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,112 pcs
|
4112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

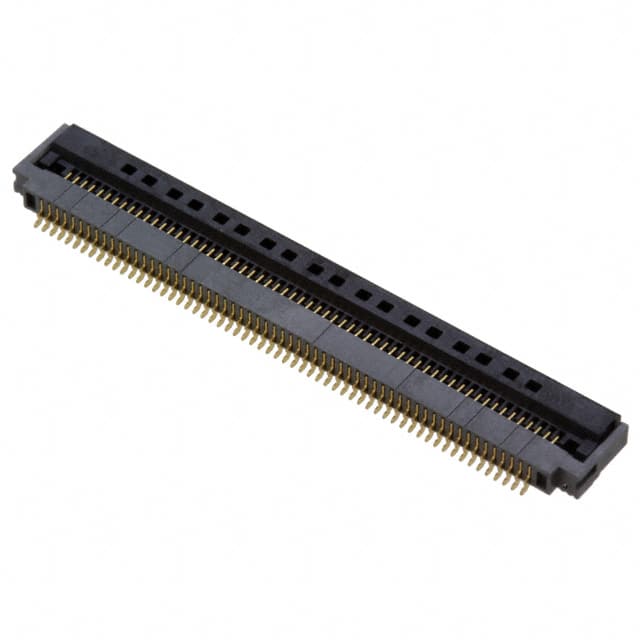

The FH52-60S-0.5SH is a 60-position FFC/FPC connector from Hirose Electric's FH52 series. It features a 0.5mm pitch and bottom contact design, suitable for flat flexible cable and flexible printed circuit connections. The connector is surface mount with a right angle orientation, allowing for space-saving board designs.
Key specifications include gold-plated phosphor bronze contacts for reliable electrical performance, a flip lock actuator for secure cable retention, and a height above board of 2.00mm. The housing and actuator are made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
The connector operates over a temperature range of -40°C to 105°C. It is designed for applications requiring high-density interconnects in consumer electronics, industrial equipment, and automotive systems. The tabbed cable end type ensures proper alignment during assembly.
The FH52-60S-0.5SH is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is supplied in tape and reel packaging for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.18 | $3.18 |
| 10+ | $2.71 | $2.71 |
| 25+ | $2.42 | $2.42 |
| 100+ | $2.30 | $2.30 |
| 250+ | $2.28 | $2.28 |
| 500+ | $2.16 | $2.16 |
| 1,000+ | $2.06 | $2.06 |
| 3,000+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm (0.020").
Surface mount, right angle.
-40°C to 105°C.
Gold.
Flip lock.
Yes, RoHS3 compliant.
