| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination |

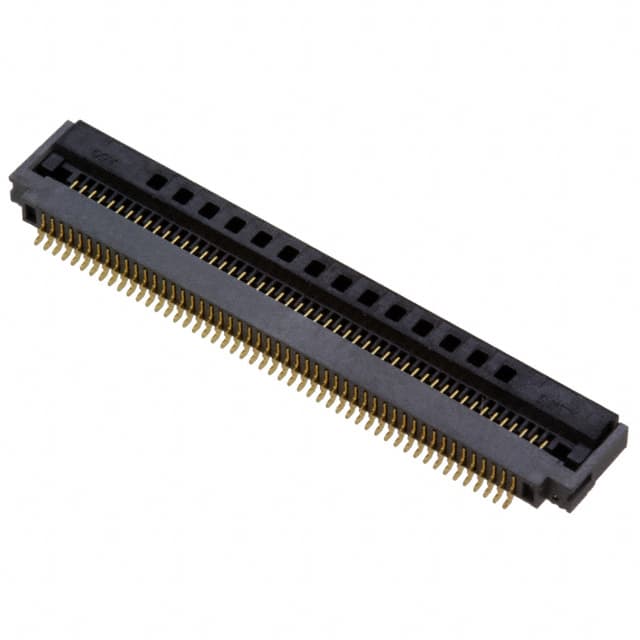

This is a 50-position FFC/FPC connector from Hirose Electric, part number FH52-50S-0.5SH(99). It features a 0.5mm pitch and a right-angle surface mount design with bottom contacts. The connector uses a flip lock actuator for secure cable retention.
The housing and actuator are made from halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold finish. The connector accepts FFC/FPC cables with a thickness of 0.30mm. Operating temperature range is -40°C to 105°C.
This connector is suitable for applications requiring compact, high-density interconnections. The right-angle orientation and bottom contact design allow for low-profile mounting with a height above board of 2.00mm. The flip lock mechanism simplifies cable insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.14 | $3.14 |
| 10+ | $2.67 | $2.67 |
| 25+ | $2.37 | $2.37 |
| 100+ | $2.28 | $2.28 |
| 500+ | $2.27 | $2.27 |
| 2,500+ | $2.21 | $2.21 |
| 5,000+ | $2.19 | $2.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.50mm.
Surface mount, right angle.
-40°C to 105°C.
Gold.
2.00mm.
Flip lock.
