| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination |

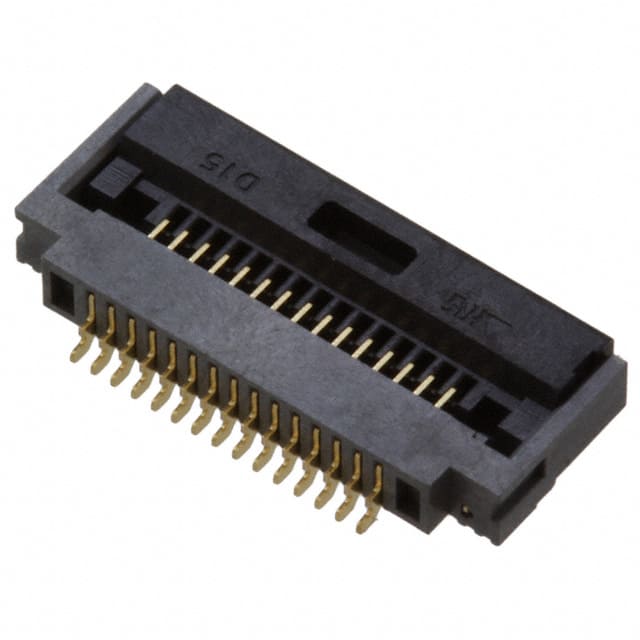

The FH52-15S-0.5SH(99) is a 15-position FFC/FPC connector from Hirose Electric, featuring a 0.5mm pitch and bottom contact configuration. It is designed for surface mount right angle mounting, with solder termination. The connector incorporates a flip lock mechanism for secure cable retention. The housing and actuator are made from halogen-free liquid crystal polymer (LCP), and contacts are gold-plated phosphor bronze. It operates over a temperature range of -40°C to 105°C and is rated UL94 V-0 for flammability. This connector is suitable for applications requiring compact, reliable interconnection of flat flexible cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 10+ | $1.94 | $1.94 |
| 25+ | $1.82 | $1.82 |
| 100+ | $1.74 | $1.74 |
| 250+ | $1.73 | $1.73 |
| 500+ | $1.68 | $1.68 |
| 1,000+ | $1.62 | $1.62 |
| 2,500+ | $1.53 | $1.53 |
| 5,000+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
0.50mm (0.020 inches).
Surface mount, right angle.
-40°C to 105°C.
Gold.
UL94 V-0.
Flip lock.
