| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,357 pcs
|
3357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,295 pcs
|
3295 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Pitch (Lead Spacing) | |
| Tape & Reel | |
| Termination | |
| Termination Style |

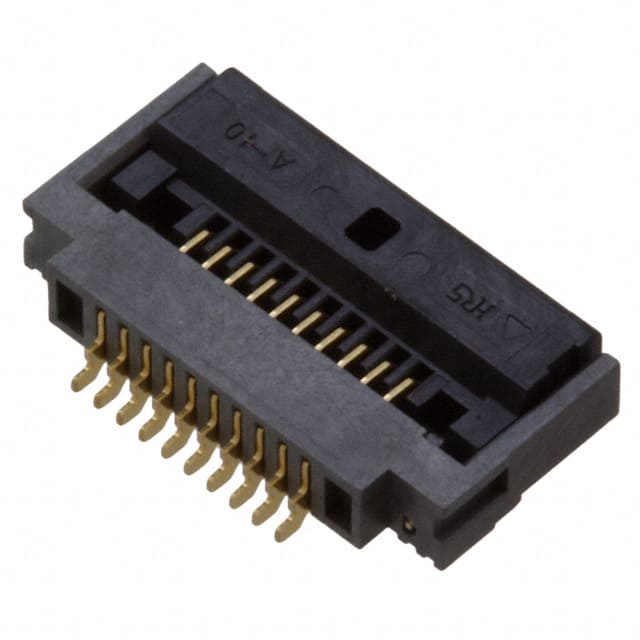

The Hirose FH52-10S-0.5SH(99) is a 10-position FFC/FPC connector from the FH52 series, featuring a 0.5mm pitch and a right-angle surface mount design. It accepts tabbed FFC/FPC cables with a thickness of 0.30mm and uses a flip lock actuator for secure cable retention.
The connector has gold-plated phosphor bronze contacts located on the bottom, ensuring reliable electrical connections. The housing and actuator are made from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, suitable for applications requiring high temperature resistance.
With an operating temperature range of -40°C to 105°C, this connector is designed for use in a variety of electronic devices. The right-angle orientation and low 2.00mm profile above the board make it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.09 | $2.09 |
| 10+ | $1.78 | $1.78 |
| 25+ | $1.59 | $1.59 |
| 100+ | $1.51 | $1.51 |
| 250+ | $1.42 | $1.42 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.24 | $1.24 |
| 2,500+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 10 positions.
It is surface mount, right angle.
The operating temperature range is -40°C to 105°C.
The contact finish is gold.
The height above board is 2.00mm.
It has a flip lock locking feature.
