| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

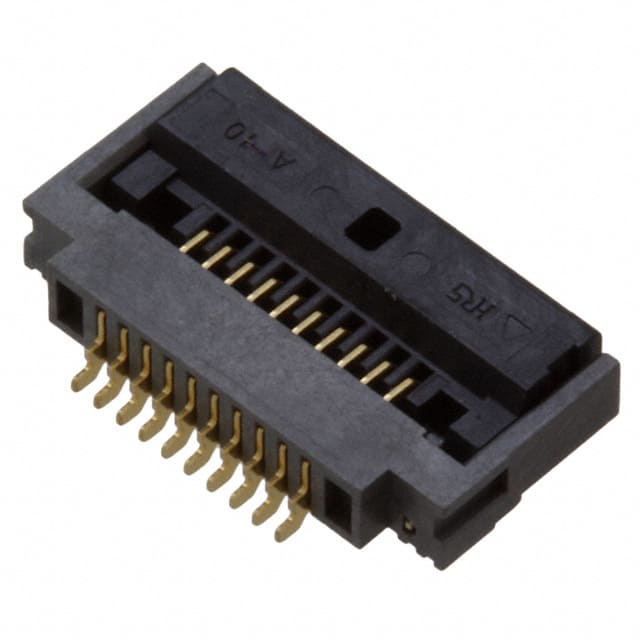

The Hirose FH52-10S-0.5SH is a 10-position FFC/FPC connector with a 0.50mm pitch, designed for right-angle surface mount soldering. It features bottom contacts and a flip lock locking mechanism for secure cable retention.
The connector uses gold-plated phosphor bronze contacts and is rated for operating temperatures from -40°C to 105°C. The housing and actuator are molded from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. It accepts FFC/FPC cables up to 0.30mm thickness with tabbed ends.
With a height above board of 2.00mm, this connector is suitable for compact, high-density interconnections in consumer, industrial, and automotive electronics where reliable flat flex cable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 10+ | $1.47 | $1.47 |
| 25+ | $1.31 | $1.31 |
| 100+ | $1.25 | $1.25 |
| 250+ | $1.17 | $1.17 |
| 500+ | $1.11 | $1.11 |
| 1,000+ | $1.06 | $1.06 |
| 3,000+ | $0.98 | $0.98 |
| 6,000+ | $0.96 | $0.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions.
The pitch is 0.50mm (0.020").
Surface mount, right angle.
-40°C to 105°C.
Gold finish.
Flip lock.
