| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

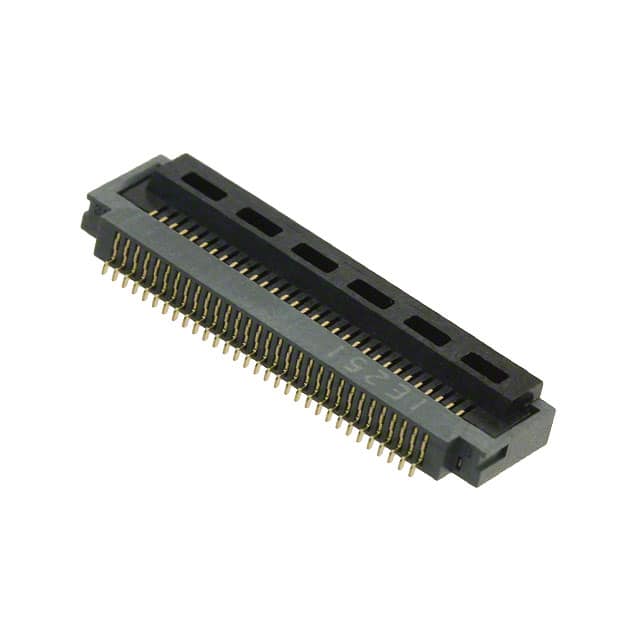

The Hirose Electric FH41-31S-0.5SH(05) is a 31-position FFC connector with a 0.50mm pitch, designed for right-angle surface mount termination. It features bottom contacts with gold-plated phosphor bronze contacts for reliable signal integrity. The housing and actuator are made from halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, ensuring durability and safety. The connector supports a tabbed cable end type with a maximum FFC thickness of 0.30mm. It includes a flip lock and backlock mechanism for secure cable retention, along with solder retention features for robust board attachment. The operating temperature range is -40°C to 105°C, and the voltage rating is 50V. This connector is suitable for compact electronic devices requiring fine-pitch FFC interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.03 | $3.03 |
| 10+ | $2.58 | $2.58 |
| 25+ | $2.30 | $2.30 |
| 100+ | $2.19 | $2.19 |
| 250+ | $2.05 | $2.05 |
| 500+ | $1.96 | $1.96 |
| 2,500+ | $1.94 | $1.94 |
| 5,000+ | $1.85 | $1.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
31 positions.
0.50mm.
50V.
Surface mount, right angle.
-40°C to 105°C.
Flip lock, backlock.
Gold.
