| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

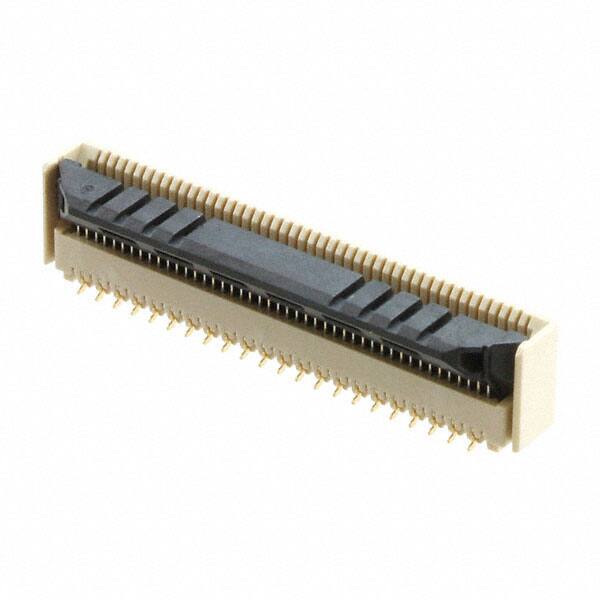

The FH40-45S-0.5SV by Hirose Electric is a high-density FPC connector designed for reliable vertical connections in compact electronic assemblies. It features 45 positions on a 0.5mm pitch, making it suitable for applications requiring fine-pitch interconnects. The connector uses gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance, housed in a liquid crystal polymer (LCP) insulator rated UL94 V-0 for flammability. The flip lock actuator provides secure cable retention, and the surface mount termination enables automated assembly. Rated for 50V, the connector operates over -40°C to 105°C and accepts 0.30mm thick FPC cables with tabbed ends.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.38 | $3.38 |
| 10+ | $2.87 | $2.87 |
| 25+ | $2.56 | $2.56 |
| 100+ | $2.44 | $2.44 |
| 250+ | $2.43 | $2.43 |
| 500+ | $2.33 | $2.33 |
| 1,000+ | $2.28 | $2.28 |
| 2,000+ | $2.18 | $2.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 positions.
0.50mm.
50V.
Surface mount.
-40°C to 105°C.
Phosphor bronze with gold finish.
Flip lock.
