| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

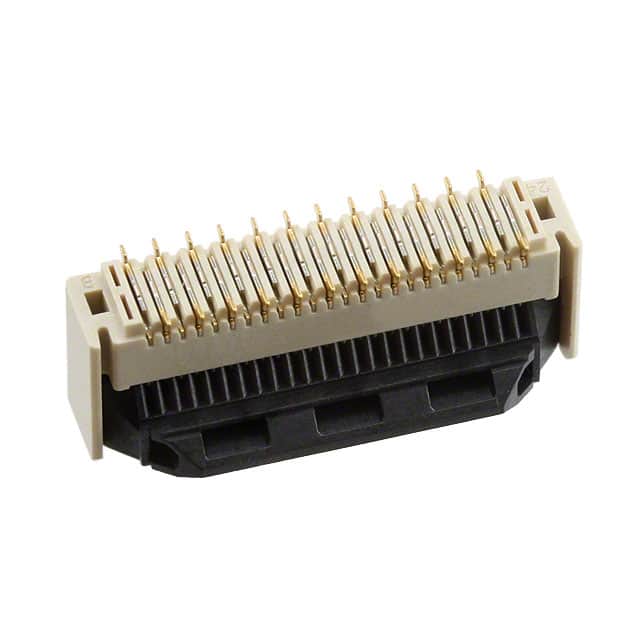

The Hirose Electric FH40-24S-0.5SV is a 24-position FPC connector featuring a 0.5mm pitch and vertical surface mount orientation. It is designed for one-sided contact with tabbed FPC cables up to 0.30mm thick. The connector uses a flip lock mechanism for secure cable retention and easy mating.
The housing and actuator are molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, ensuring reliable performance in demanding environments. Contacts are phosphor bronze with gold finish for excellent conductivity and corrosion resistance. The connector is rated for 50V and operates over a temperature range of -40°C to 105°C.
This connector is suitable for compact electronic assemblies where space is limited, such as in consumer electronics, industrial controls, and communication devices. The surface mount design supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $1.81 | $1.81 |
| 25+ | $1.67 | $1.67 |
| 100+ | $1.64 | $1.64 |
| 250+ | $1.60 | $1.60 |
| 500+ | $1.59 | $1.59 |
| 1,000+ | $1.53 | $1.53 |
| 2,000+ | $1.42 | $1.42 |
| 5,000+ | $1.39 | $1.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
0.50mm (0.020").
50V.
Surface mount.
-40°C to 105°C.
