| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

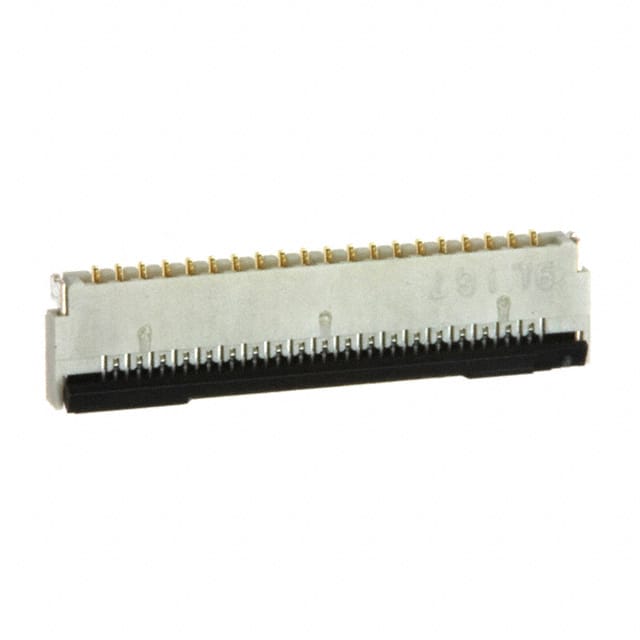

The Hirose FH39-39S-0.3SHW(10) is a 39-position FPC connector with a 0.3mm pitch, designed for right angle surface mount applications. It features gold-plated phosphor bronze contacts for reliable electrical performance and durability. The connector utilizes a zero insertion force (ZIF) flip lock actuator with backlock mechanism, ensuring secure cable retention. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is polyamide (PA) nylon. It supports FPC cables with a thickness of 0.20mm and tapered ends. The connector is rated for 30V and operates over a temperature range of -55°C to 85°C. Contact arrangement is top and bottom sides.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $1.13 | $1.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
39 positions.
0.30mm (0.012 inches).
30V.
Surface mount, right angle.
-55°C to 85°C.
Flip lock, backlock (ZIF).
Gold.
