| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

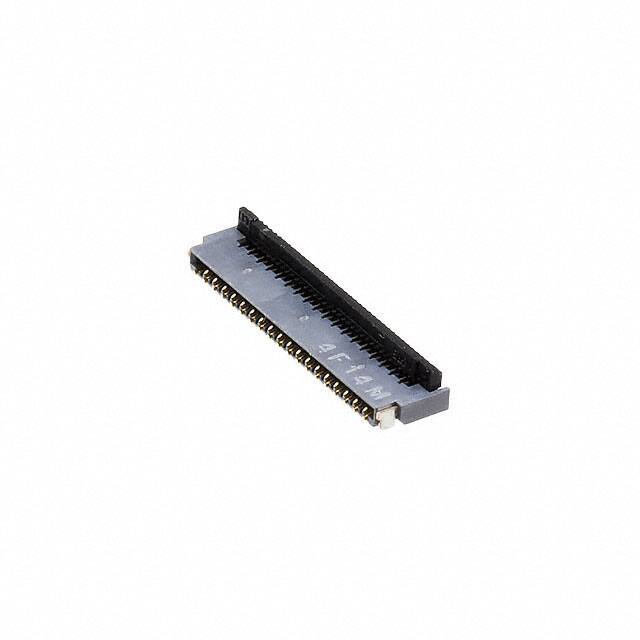

The Hirose Electric FH35C-37S-0.3SHW(99) is a 37-position FPC connector featuring a 0.30mm pitch and a right-angle surface mount design. It is part of the FH35C series, known for its compact, low-profile construction. The connector uses gold-plated phosphor bronze contacts arranged on both the top and bottom of the insertion area, providing reliable electrical connection for FPC cables up to 0.20mm thick.
The housing is made from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is constructed from polyamide (PA) nylon. The locking mechanism is a flip lock backlock design, ensuring secure cable retention. The connector has a height above board of 0.88mm and is rated for 30V operation. It is designed for use in space-constrained applications requiring a high-density, low-profile interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.58 | $3.58 |
| 10+ | $3.26 | $3.26 |
| 25+ | $3.09 | $3.09 |
| 100+ | $2.87 | $2.87 |
| 250+ | $2.51 | $2.51 |
| 500+ | $2.13 | $2.13 |
| 2,500+ | $1.98 | $1.98 |
| 5,000+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 37 positions.
The pitch is 0.30mm.
Surface mount, right angle.
30V.
-55°C to 85°C.
Gold.
