Mfr Part #:

FH34SW-12S-0.5SH(50)

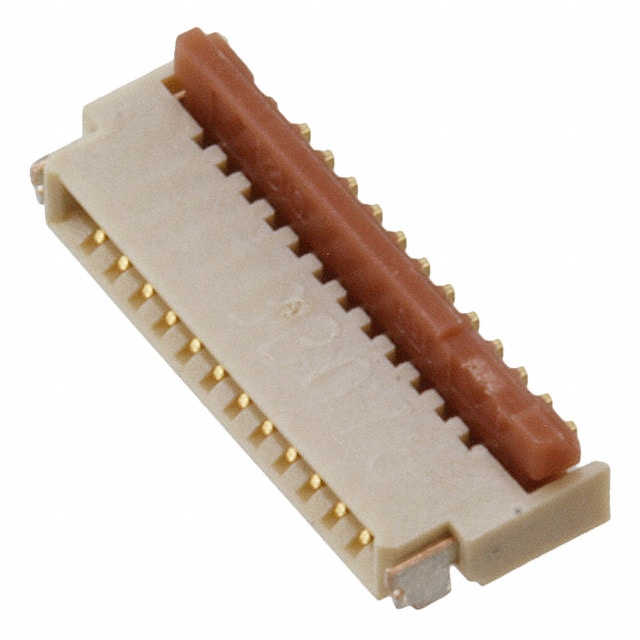

Name: FH34SW-12S-0.5SH(50)
Brand: Hirose Electric
SKU: FH34SW-12S-0.5SH(50)

Mfr Name: Hirose Electric

Description:

CONN FFC FPC TOP 12POS 0.5MM R/A

Stock on Request

FH34SW-12S-0.5SH(50) Description

Short technical summary and product information.

CONN FFC FPC TOP 12POS 0.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Hirose Electric

CONN FFC FPC TOP 12POS 0.5MM R/A

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Hirose Electric
Actuator Material	Polyamide (PA), Nylon, Halogen Free
Cable End Type	Tapered
Connector	Contacts, Top
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Zero Insertion Force (ZIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.039" (1.00mm)
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Rotary Lock, Backlock
Material Flammability Rating	UL94 HB
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Operating Temperature	-55°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
