| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
430 pcs
|
430 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current | |
| Halogen Free | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Voltage |

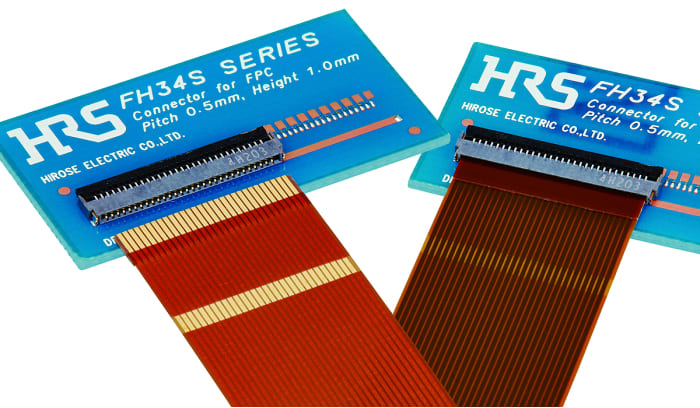

The Hirose FH34SRJ-4S-0.5SH(99) is a straight female FPC connector designed for surface mounting. It features a 0.5mm pitch and accommodates 4 contacts, with both top and bottom contact positions available for design flexibility. This connector operates with a current rating of 500mA and a voltage rating of 50V ac.
Designed with a zero insertion force (ZIF) mechanism and a back-flip rotating actuator, it ensures easy FPC insertion and a reliable connection. The connector has a low profile height of 1.00mm and a narrow width of 3.8mm, making it suitable for space-constrained applications. It accepts standard 0.3mm FPC thickness and satisfies halogen-free requirements.
Key features include high retention force, chamfered inner housing walls for smooth insertion, and a flat upper surface for vacuum pick-up. The bottom of the connector is solid, allowing it to be mounted over conductive traces on the PCB. Its operating temperature range is from -55°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
0.5 mm.
500 mA.
50 V AC.
Surface mount.
-55°C to 85°C.
Yes, it is a zero insertion force (ZIF) connector.
