| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

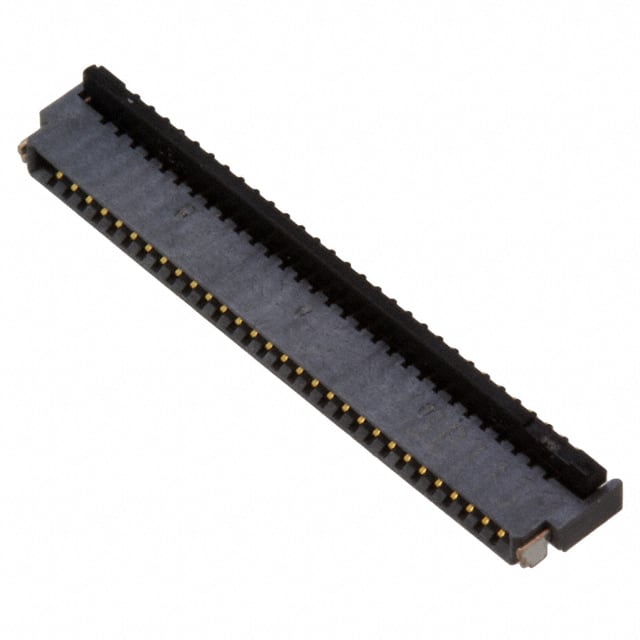

The Hirose FH34SRJ-30S-0.5SH(50) is a 30-position, 0.5mm pitch FFC/FPC connector designed for surface mount, right angle mounting. It features a Zero Insertion Force (ZIF) mechanism with a rotary backlock actuator for secure cable retention. The connector accepts both FFC and FPC cables with a thickness of 0.30mm and a tapered cable end type.
Contacts are arranged on top and bottom, finished with gold over phosphor bronze for reliable electrical performance. The housing is made from halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is polyamide (nylon). The connector has a height above board of 1.00mm and is rated for 50V operation over a temperature range of -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $1.02 | $1.02 |
| 25+ | $0.99 | $0.99 |
| 100+ | $0.92 | $0.92 |
| 250+ | $0.88 | $0.88 |
| 5,000+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
This connector has 30 positions.
The voltage rating is 50V.
It is a surface mount, right angle connector.
Yes, it features a rotary lock, backlock mechanism (ZIF).
The operating temperature range is -55°C to 105°C.
The housing is made of halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
