| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

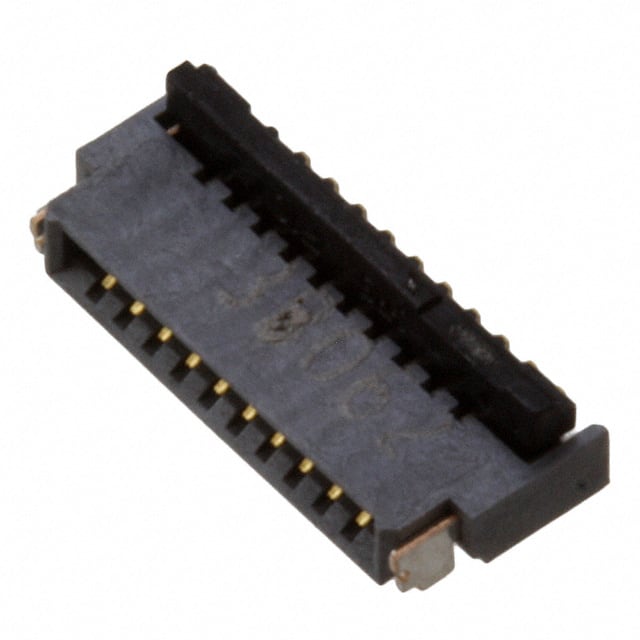

The Hirose FH34SRJ-10S-0.5SH(50) is a 10-position FFC/FPC connector with a 0.5mm pitch, designed for space-constrained applications requiring a reliable zero insertion force (ZIF) connection. It features a right-angle surface mount orientation and a rotary lock with backlock for secure mating. The housing is made of halogen-free liquid crystal polymer (LCP) with UL94 V-0 flammability rating, and the actuator is polyamide (PA). Contacts are phosphor bronze with gold plating, ensuring low contact resistance and durability. The connector supports FFC and FPC cables with a tapered end and 0.3mm thickness. Electrical rating is 50V, and the operating temperature range is -55°C to 105°C. This connector is suitable for applications in consumer electronics, automotive, and industrial equipment where compactness and reliability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.93 | $0.93 |
| 10+ | $0.79 | $0.79 |
| 25+ | $0.71 | $0.71 |
| 100+ | $0.67 | $0.67 |
| 250+ | $0.63 | $0.63 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.58 | $0.58 |
| 2,500+ | $0.57 | $0.57 |
| 5,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
0.5mm (0.020").
Surface mount, right angle.
50V.
Yes, it features Zero Insertion Force (ZIF) with a rotary lock and backlock.
-55°C to 105°C.
UL94 V-0.
