| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
459 pcs
|
459 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Material | |
| Automotive Grade | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

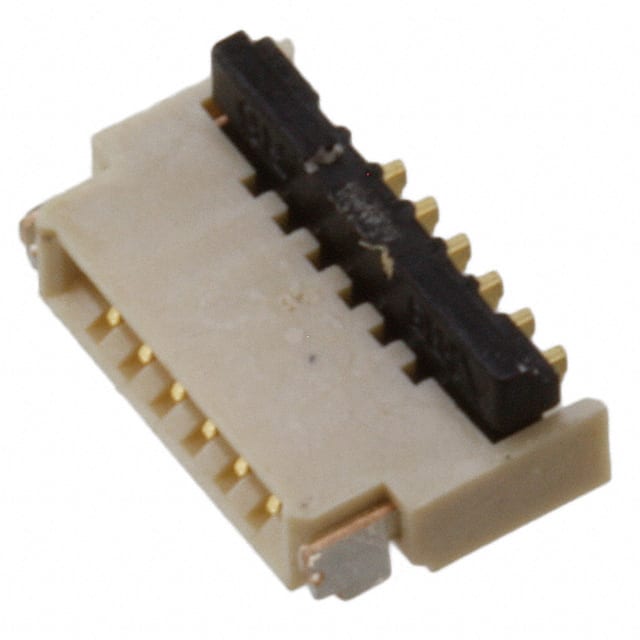

The Hirose FH34SJ-6S-0.5SH(50) is a 6-position, 0.5mm pitch FFC/FPC connector from the FH34SJ series. It features a top contact design with a Zero Insertion Force (ZIF) rotary lock, backlock actuator for reliable mechanical and electrical connection. The connector accepts standard 0.30mm thick FFC or FPC cables with a tapered end.
This connector has a low-profile height of 1.00mm above the board and a surface mount, right angle mounting style. It is rated for 50V and 0.5A, with an operating temperature range of -55°C to 85°C. The housing is made of halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and contacts are gold-plated phosphor bronze.
The FH34SJ series is designed for space-saving applications and offers increased FPC/FFC retention force compared to previous designs. The unique back-flip rotating actuator opens from the back, ensuring easy FPC insertion and a tactile confirmation when fully closed. The connector is delivered with the actuator open for immediate use.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 6 positions.
The pitch is 0.50mm.
The current rating is 0.5A.
The voltage rating is 50V.
The mounting type is surface mount, right angle.
It uses a Zero Insertion Force (ZIF) rotary lock, backlock actuator.
The operating temperature range is -55°C to 85°C.
