| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

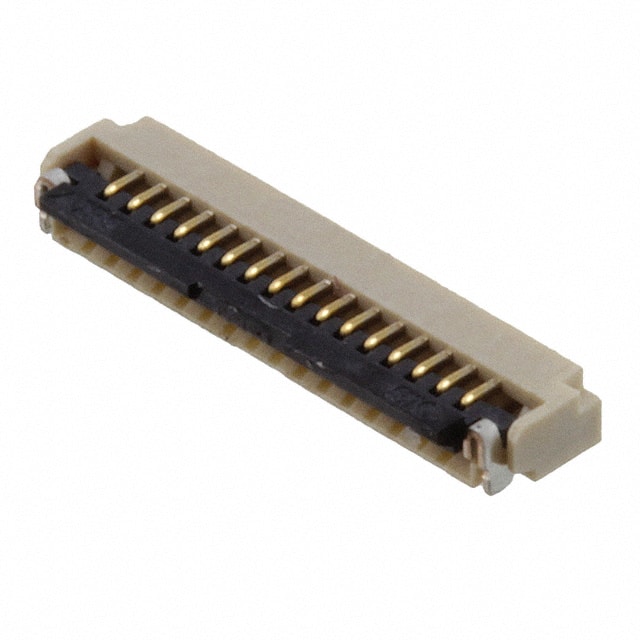

The Hirose FH33J-16S-0.5SH(10) is a 16-position, 0.5mm pitch FFC/FPC connector designed for surface mount, right-angle mounting. It features a Zero Insertion Force (ZIF) flip lock mechanism for secure cable retention and easy insertion. The connector uses gold-plated phosphor bronze contacts and a halogen-free Liquid Crystal Polymer (LCP) housing with a Polyphenylene Sulfide (PPS) actuator.
This connector supports FFC and FPC cables with a thickness of 0.30mm and a tapered cable end type. It is rated for 50V and operates over a temperature range of -55°C to 85°C. The bottom contact design enables a low-profile height above board of 1.20mm, making it suitable for space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.36 | $1.36 |
| 10+ | $1.16 | $1.16 |
| 25+ | $1.04 | $1.04 |
| 100+ | $0.98 | $0.98 |
| 250+ | $0.93 | $0.93 |
| 5,000+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 16 positions.
The pitch is 0.50mm.
It is surface mount, right angle.
The voltage rating is 50V.
It uses a flip lock mechanism.
