| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

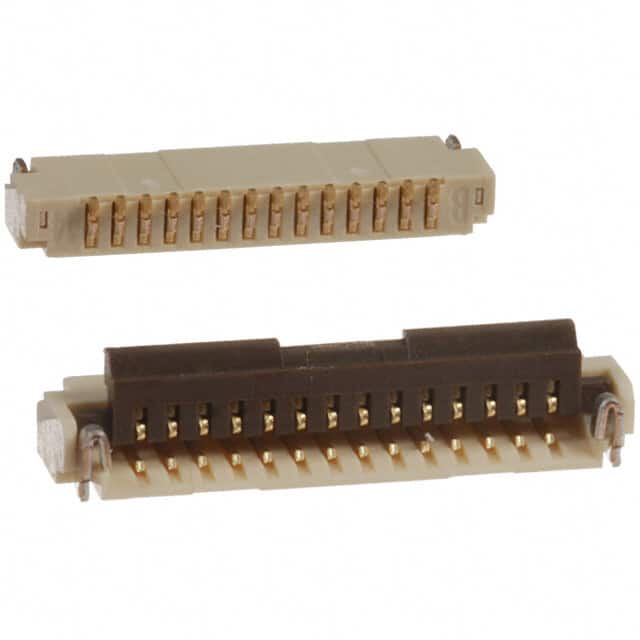

The FH33-14S-0.5SH(10) is an FFC/FPC connector from Hirose Electric. It features 14 positions with a 0.5mm pitch and bottom contacts. The connector uses a ZIF (Zero Insertion Force) flip lock mechanism for easy cable insertion and removal. It is designed for surface mount, right-angle mounting. The operating temperature range is -55°C to 85°C. The housing and actuator are made of polyamide (PA), nylon with UL94 V-0 flammability rating. Contacts are phosphor bronze with gold finish. The connector is suitable for applications where space is limited and a reliable connection is required. The height above board is 1.20mm. The cable end type is tapered. The connector is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
| 10+ | $1.12 | $1.12 |
| 25+ | $1.00 | $1.00 |
| 100+ | $0.95 | $0.95 |
| 250+ | $0.90 | $0.90 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
0.50mm (0.020").
50V.
Surface Mount, Right Angle.
-55°C to 85°C.
Yes, a flip lock mechanism.
UL94 V-0.
