| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination |

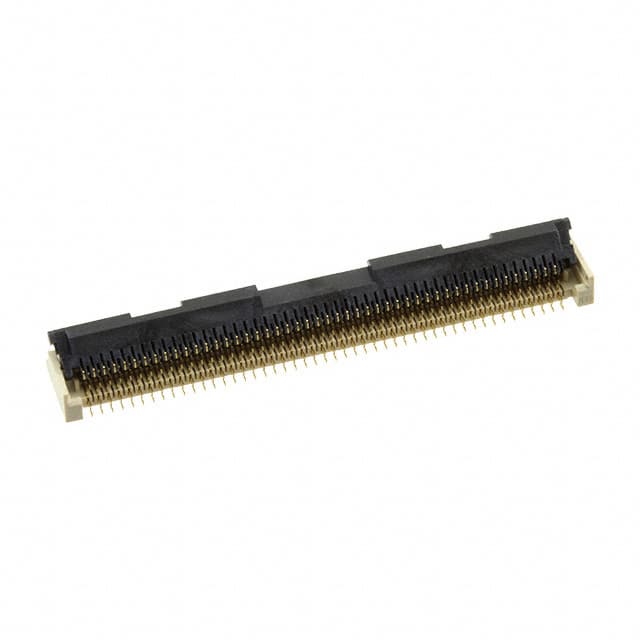

The Hirose FH30M-96S-0.4SHW(98) is a 96-position FPC connector with a 0.4mm pitch, designed for high-density interconnects. It features bottom contacts and a right-angle surface mount termination, making it suitable for compact PCB layouts. The connector uses a rotary lock mechanism for secure cable retention and supports zero insertion force (ZIF) operation, simplifying assembly and reducing wear on the FPC.
The housing is made of halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, ensuring reliability in demanding environments. Contacts are phosphor bronze with gold plating for excellent conductivity and corrosion resistance. The operating temperature range is -40°C to 85°C, accommodating a wide variety of applications.
This connector is designed for use with tabbed FPC cables of 0.30mm thickness. Its compact 3.00mm height above board enables space-constrained designs. Typical applications include consumer electronics, portable devices, and display interfaces where high pin count and fine pitch are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.77 | $9.77 |
| 10+ | $8.31 | $8.31 |
| 25+ | $7.79 | $7.79 |
| 50+ | $7.41 | $7.41 |
| 100+ | $7.06 | $7.06 |
| 250+ | $6.61 | $6.61 |
| 500+ | $6.45 | $6.45 |
| 1,000+ | $5.97 | $5.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions.
0.40mm.
Surface mount, right angle.
Yes, a rotary lock.
Yes, it features zero insertion force (ZIF).
-40°C to 85°C.
