| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,651 pcs
|
3651 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

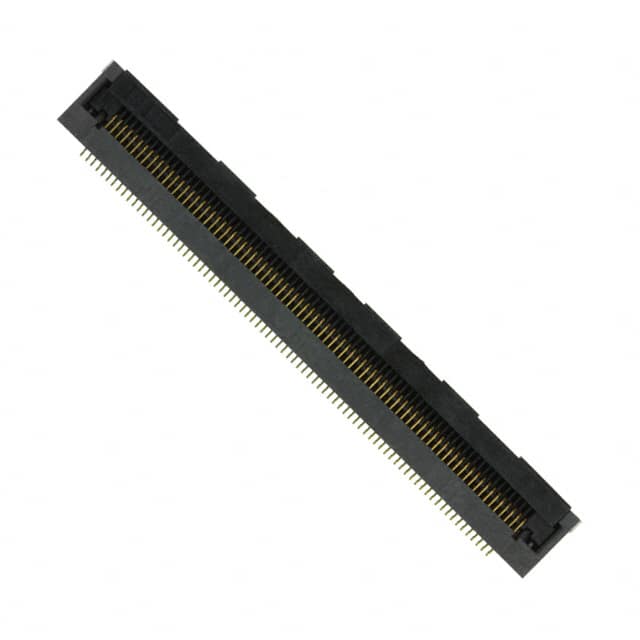

The Hirose FH28H-80S-0.5SH(05) is a high-density FFC/FPC connector featuring 80 positions with a 0.5mm pitch. It is designed for surface mount right angle mounting, making it suitable for compact electronic assemblies where space is at a premium. The connector uses bottom contacts and a zero insertion force (ZIF) rotary lock actuator for secure cable retention.
This connector is rated for 50V and operates over a temperature range of -40°C to +105°C. The housing and actuator are made from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold plating, ensuring reliable signal integrity over repeated mating cycles.
The FH28H series is ideal for applications requiring fine-pitch interconnection in consumer electronics, industrial controls, and automotive systems. The right angle orientation allows for low-profile cable routing parallel to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.71 | $3.71 |
| 10+ | $3.15 | $3.15 |
| 25+ | $2.95 | $2.95 |
| 50+ | $2.81 | $2.81 |
| 100+ | $2.68 | $2.68 |
| 250+ | $2.51 | $2.51 |
| 500+ | $2.39 | $2.39 |
| 1,000+ | $2.37 | $2.37 |
| 2,000+ | $2.17 | $2.17 |
| 4,000+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 80 positions.
The pitch is 0.5mm.
It is surface mount with a right angle orientation.
The voltage rating is 50V.
The operating temperature range is -40°C to +105°C.
It uses a zero insertion force (ZIF) rotary lock.
Yes, the housing and actuator are made from halogen-free LCP material.
