| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

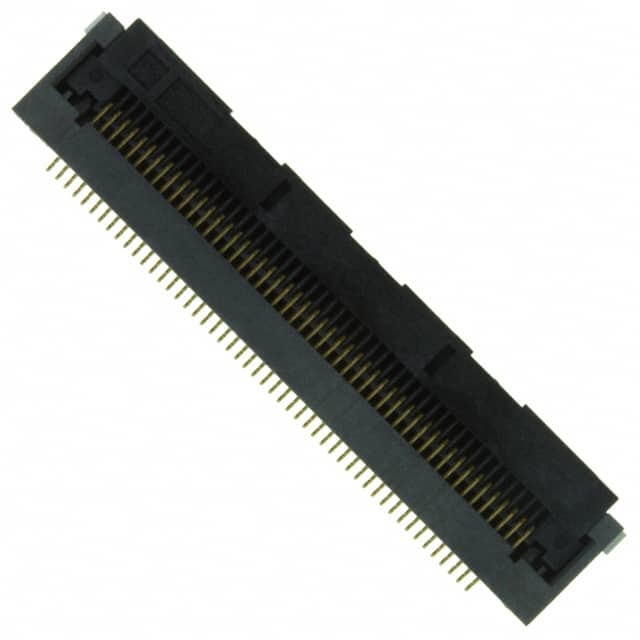

The Hirose Electric FH28E-50S-0.5SH(05) is a 50-position, 0.5mm pitch FFC/FPC connector designed for surface mount, right angle applications. It uses a bottom contact arrangement and accepts tabbed cables with a thickness of 0.30mm. The connector features a rotary lock mechanism for secure mating and Zero Insertion Force (ZIF) operation, reducing stress on the cable and contacts. Solder retention aids in maintaining alignment during assembly.
This connector is built with a halogen-free Liquid Crystal Polymer (LCP) housing and actuator, meeting UL94 V-0 flammability requirements. The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical conductivity and corrosion resistance. The operating temperature range is -40°C to 105°C, making it suitable for a variety of environments.
The FH28E series connector has a height above board of 2.54mm, enabling compact designs. It is ideal for FFC/FPC interconnections in consumer electronics, automotive control modules, and industrial equipment. The right angle orientation allows for low-profile cable routing perpendicular to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.71 | $1.71 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.52 | $1.52 |
| 500+ | $1.40 | $1.40 |
| 1,000+ | $1.27 | $1.27 |
| 2,000+ | $1.20 | $1.20 |
| 4,000+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.5mm (0.020 inches).
Surface mount, right angle.
-40°C to 105°C.
Gold.
Yes, rotary lock.
0.30mm.
