| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

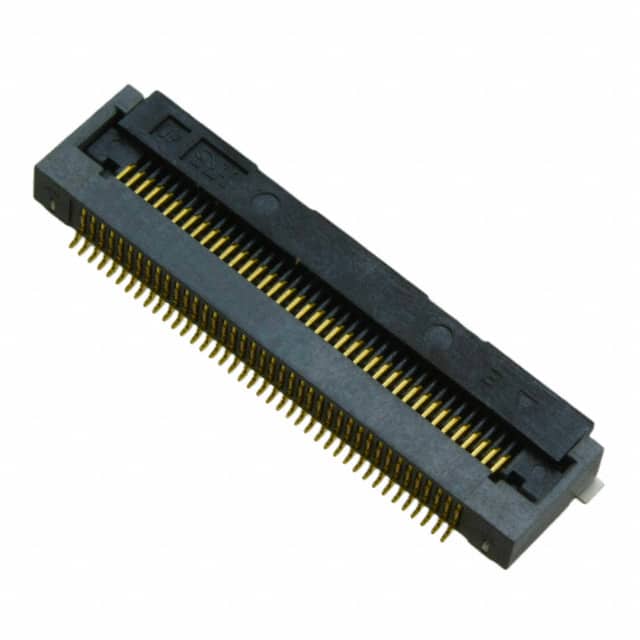

The FH28E-40S-0.5SH(05) from Hirose Electric is a 40-position, 0.5mm pitch surface mount right-angle FFC/FPC connector. It features a zero insertion force (ZIF) rotary lock mechanism for secure cable retention and easy mating. The connector is designed for FFC and FPC cables with a thickness of 0.30mm, and uses a tabbed cable end type.
Contact material is phosphor bronze with gold plating, ensuring reliable electrical connections. The housing and actuator are made of halogen-free liquid crystal polymer (LCP) rated UL94 V-0 for flammability. The operating temperature range is -40°C to 105°C, suitable for a wide range of applications.
This connector uses solder termination with solder retention features to improve mechanical stability during reflow. The right-angle orientation allows low-profile board mounting with a height above board of 2.54mm. The contacts are on the bottom side, making it ideal for compact electronic assemblies where space is constrained.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $1.07 | $1.07 |
| 4,000+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.5mm (0.020 inches).
Surface mount, right angle, with solder termination.
Rotary lock for zero insertion force (ZIF) operation.
Gold plating.
-40°C to 105°C.
Halogen-free Liquid Crystal Polymer (LCP).
