| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145 pcs
|
145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

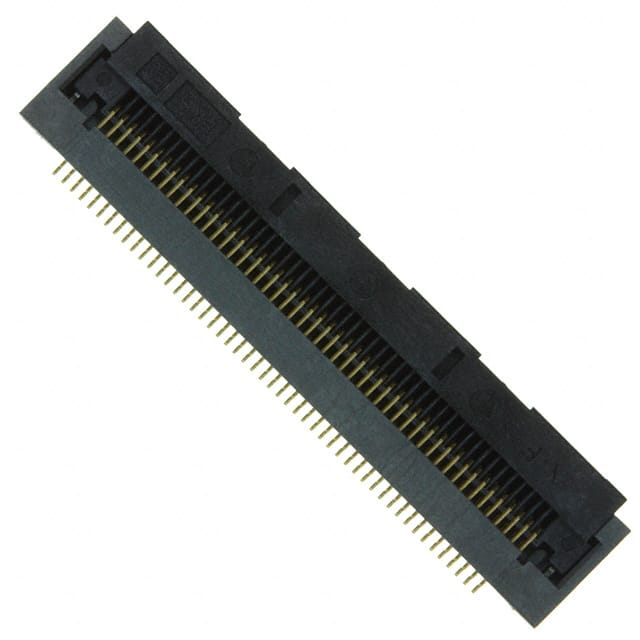

The Hirose Electric FH28D-50S-0.5SH(05) is a 50-position FFC/FPC connector with a 0.50mm pitch, designed for right-angle surface mount termination. It features bottom contacts with gold plating over phosphor bronze for reliable signal integrity. The housing and actuator are molded from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This connector incorporates a rotary lock mechanism for secure cable retention and zero insertion force (ZIF) operation, simplifying assembly and reducing wear on the flexible cable. Solder retention features aid in reliable board mounting. The connector accepts FFC or FPC cables with a thickness of 0.30mm and has a height above board of 2.54mm.
Rated for 50V and an operating temperature range of -40°C to 105°C, this connector is suitable for a variety of compact electronic assemblies requiring a dense, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 10+ | $1.63 | $1.63 |
| 25+ | $1.46 | $1.46 |
| 100+ | $1.39 | $1.39 |
| 250+ | $1.30 | $1.30 |
| 500+ | $1.26 | $1.26 |
| 1,000+ | $1.24 | $1.24 |
| 2,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-40°C to 105°C.
Rotary lock.
0.30mm.
