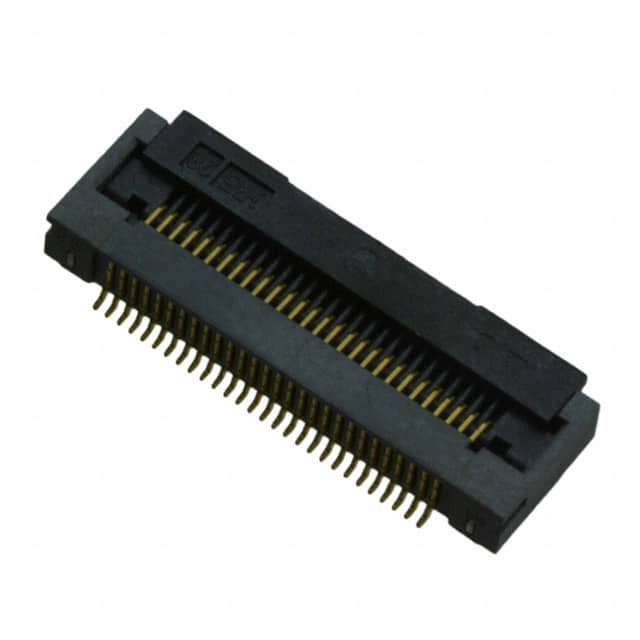

The FH28D-28S-0.5SH(05) is a 28-position, 0.5mm pitch FFC/FPC connector from Hirose Electric, designed for reliable flat flexible cable interconnection. It features a right-angle surface mount orientation with bottom contacts, supporting cables up to 0.3mm thick. The connector incorporates Zero Insertion Force (ZIF) with a rotary lock mechanism for secure mating and easy cable insertion.
Electrical rating is 50V DC, with contacts made of gold-plated phosphor bronze for low resistance and corrosion resistance. The housing and actuator are molded from halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Operating temperature ranges from -40°C to 105°C, making it suitable for demanding environments.
This connector is ideal for space-constrained designs requiring a compact, low-profile interconnect. The right-angle configuration allows for flat cable routing parallel to the PCB, saving vertical space. The solder retention feature ensures reliable termination during reflow soldering.
Packaging details are not verified, but the part is available through distributors. Compliance with RoHS3 and REACH is indicated but unverified. For detailed specifications, refer to manufacturer documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
| 10+ | $1.44 | $1.44 |
| 25+ | $1.28 | $1.28 |
| 100+ | $1.24 | $1.24 |
| 250+ | $1.22 | $1.22 |
| 500+ | $1.20 | $1.20 |
| 2,000+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 28 positions.
The pitch is 0.5mm (0.020 inches).
The voltage rating is 50V DC.
It is a surface mount, right-angle connector.
The operating temperature range is -40°C to 105°C.
It features a rotary lock for secure cable retention.
Contacts are made of phosphor bronze with gold plating.
