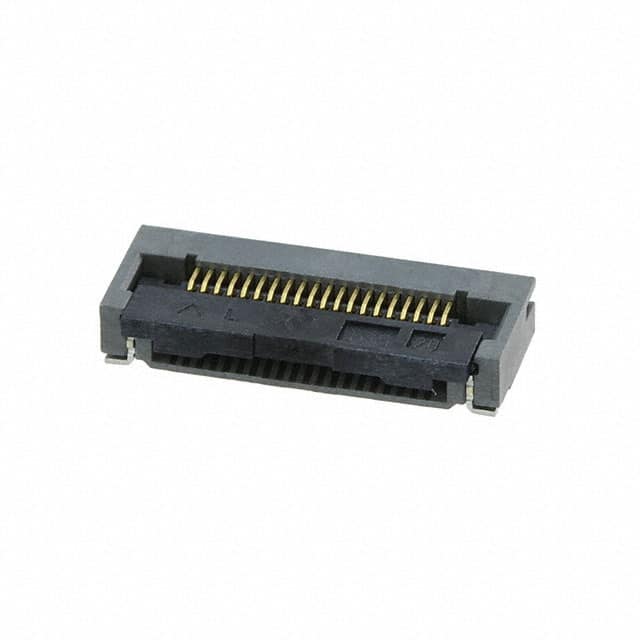

The FH28D-20S-0.5SH(05) from Hirose Electric is a 20-position, 0.5mm pitch FFC/FPC connector designed for right angle surface mount applications. It features bottom contacts with gold-plated phosphor bronze for reliable electrical performance. The housing and actuator are made from halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector incorporates a rotary lock for secure cable retention and a zero insertion force (ZIF) mechanism that simplifies cable insertion.
This connector accepts tabbed FFC/FPC cables with a thickness of 0.30mm and has a height above board of 2.54mm. Solder retention pads provide additional mechanical stability during assembly. The operating temperature range is -40°C to 105°C, and the voltage rating is 50V. The connector is suitable for applications requiring a compact, low-profile right-angle connection in dense PCB layouts.
While the RoHS, REACH, and MSL status are unverified, the material specification indicates halogen-free construction. The part is part of the FH28D series, though series-specific details are not available in the provided data. A datasheet is not linked, and the manufacturer page was inaccessible.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
| 10+ | $1.30 | $1.30 |
| 25+ | $1.16 | $1.16 |
| 100+ | $1.11 | $1.11 |
| 250+ | $1.04 | $1.04 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.98 | $0.98 |
| 2,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
0.50mm (0.020 inches).
50V.
Surface Mount, Right Angle.
-40°C to 105°C.
Yes, rotary lock.
Gold.
