Mfr Part #:

FH28D-20(10)SB-1SH(98)

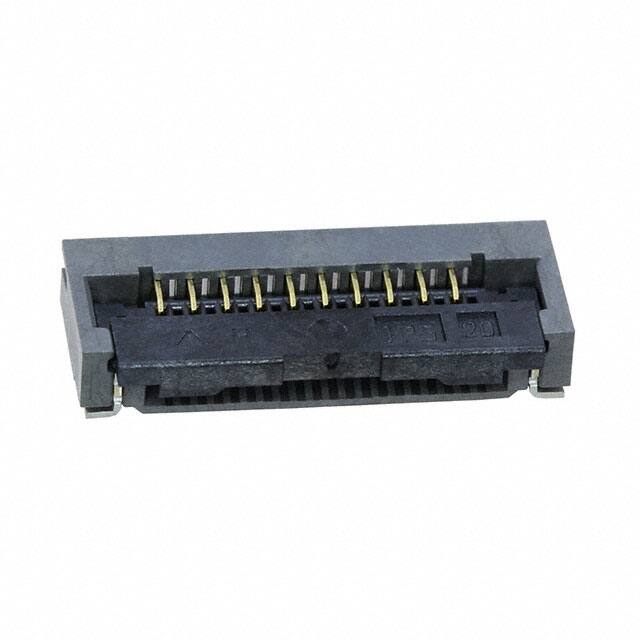

Name: FH28D-20(10)SB-1SH(98)
Brand: Hirose Electric
SKU: FH28D-20(10)SB-1SH(98)

Mfr Name: Hirose Electric

Description:

CONN FFC FPC BOTTOM 20POS 1MM RA

Stock on Request

FH28D-20(10)SB-1SH(98) Description

Short technical summary and product information.

CONN FFC FPC BOTTOM 20POS 1MM RA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Hirose Electric
Cable End Type	Tabbed
Connector	Contacts, Bottom
Contact Finish	Gold
FFC, FCB Thickness	0.30mm
Flat Flex Type	FFC, FPC
Height Above Board	0.100" (2.54mm)
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Rotary Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20 (10 Loaded)
Pitch	0.039" (1.00mm)
Termination	Solder
