| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

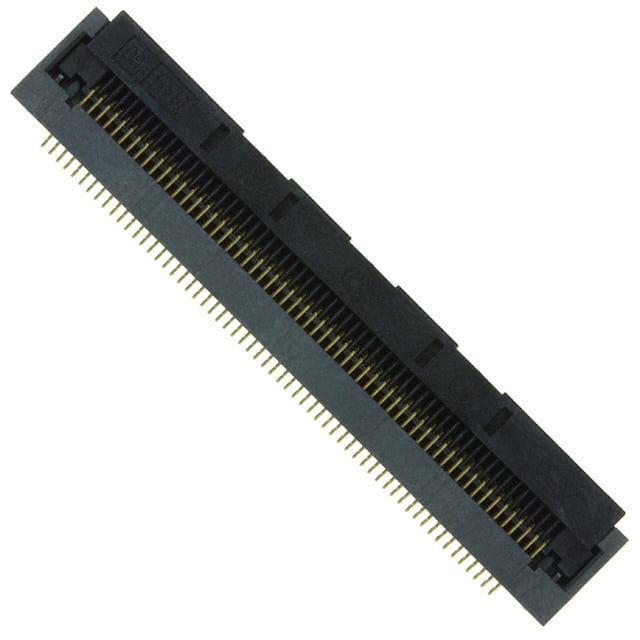

The FH28-60S-0.5SH(05) is a 60-position FFC/FPC connector from Hirose Electric's FH28 series. It features a 0.5mm pitch and surface mount right angle orientation with bottom contacts. The connector incorporates a zero insertion force (ZIF) mechanism with a rotary lock for secure cable retention. Solder retention features enhance board-level reliability.
The housing and actuator are made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold plating, rated for 50V. The operating temperature range is -40°C to 105°C, making it suitable for a variety of environments.
This connector is designed for use with tabbed FFC/FPC cables up to 0.30mm thick. It is ideal for applications requiring high-density flex circuit connections, such as consumer electronics, medical devices, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.29 | $2.29 |
| 10+ | $1.95 | $1.95 |
| 25+ | $1.74 | $1.74 |
| 100+ | $1.66 | $1.66 |
| 250+ | $1.58 | $1.58 |
| 500+ | $1.56 | $1.56 |
| 2,000+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm (0.020 inches).
Surface mount, right angle.
50V.
-40°C to 105°C.
Gold.
Yes, it features a rotary lock for secure cable retention.
