| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
224 pcs
|
224 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

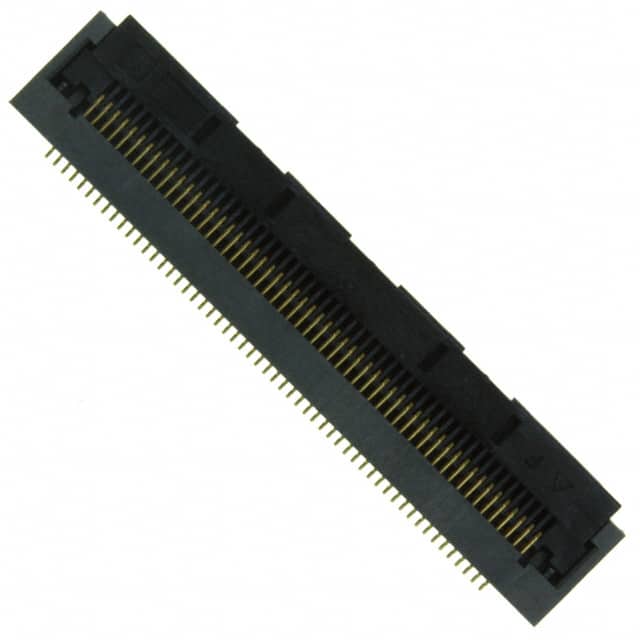

The FH28-55S-0.5SH(98) from Hirose Electric is a 55-position FFC/FPC connector featuring a 0.5mm pitch. It is a right-angle surface mount connector with solder termination and bottom contacts. The connector utilizes a Zero Insertion Force (ZIF) design with a rotary lock for secure cable retention.
It features gold-plated phosphor bronze contacts housed in a halogen-free liquid crystal polymer (LCP) housing. The connector supports FFC or FPC cables with a thickness of 0.30mm. It is rated for 50V and operates over a temperature range of -40°C to 105°C.
The housing material is rated UL94 V-0 for flammability. Solder retention features are included for reliable board attachment. This connector is suitable for applications requiring a compact, high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.64 | $1.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
55 positions.
0.5mm pitch.
50V.
Surface mount, right angle.
-40°C to 105°C.
Rotary lock with ZIF (Zero Insertion Force).
Yes, the housing and actuator are made of halogen-free liquid crystal polymer (LCP).
