| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

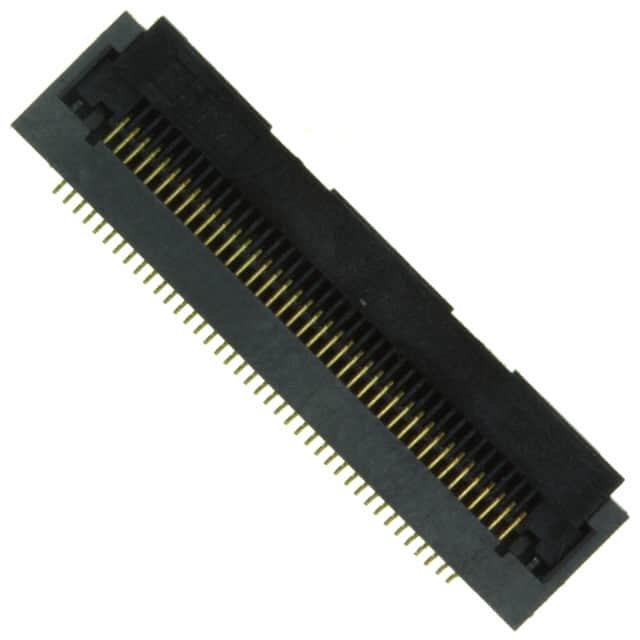

The FH28-40S-0.5SH(98) is a 40-position FFC/FPC connector from the FH28 series by Hirose Electric. It is designed for flat flexible cable (FFC) and flexible printed circuit (FPC) mating, with a 0.5mm contact pitch and bottom contact orientation. The connector supports a cable end type of tabbed and accepts FFC/FPC thickness of 0.30mm. It is rated for 50V DC and operates over a temperature range of -40°C to 105°C.
This connector features a right-angle surface mount termination with solder contacts, and includes a zero insertion force (ZIF) mechanism for easy cable insertion without damaging the contacts. The locking feature is a rotary lock that ensures secure retention. The housing and actuator are made of liquid crystal polymer (LCP) which is halogen free and rated UL94 V-0 for flammability. The contacts are made of phosphor bronze with gold plating.
The FH28-40S-0.5SH(98) is suitable for applications requiring reliable, compact interconnections in space-constrained designs. The right-angle mounting allows for low-profile connections parallel to the board. The solder retention feature helps maintain the connector position during assembly. This connector is commonly used in consumer electronics, automotive, and industrial equipment where flexible circuits are needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
| 10+ | $2.13 | $2.13 |
| 25+ | $1.90 | $1.90 |
| 100+ | $1.81 | $1.81 |
| 500+ | $1.80 | $1.80 |
| 1,000+ | $1.66 | $1.66 |
| 2,500+ | $1.57 | $1.57 |
| 5,000+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.50mm (0.020").
50V.
Surface Mount, Right Angle.
-40°C to 105°C.
Yes, it features a ZIF mechanism with rotary lock.
RoHS3 compliant (unverified).
