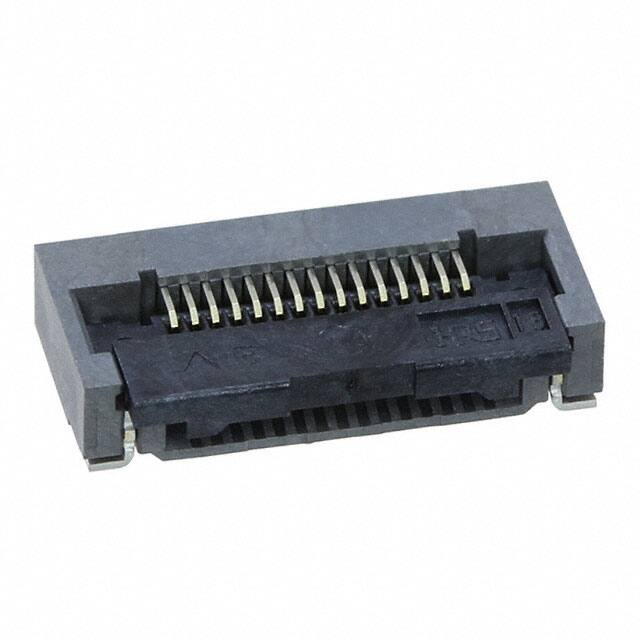

The FH28-15S-0.5SH(10) is a 15-position, 0.5mm pitch FFC (Flat Flexible Cable) / FPC (Flexible Printed Circuit) connector from Hirose Electric. It is designed for surface mount, right-angle orientation, providing a low-profile solution with a height above board of 2.54mm. The connector uses bottom contacts with gold-plated phosphor bronze contacts for reliable electrical performance.
This connector features a zero insertion force (ZIF) mechanism with a rotary lock, ensuring secure cable retention without damaging the flex circuit. The housing and actuator are made of halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Additional features include solder retention for robust mechanical attachment during reflow soldering.
The FH28-15S-0.5SH(10) supports FFC/FPC cables with a thickness of 0.30mm and tabbed cable ends. It is rated for 50V and operates over a temperature range of -40°C to 105°C. The connector is compliant with RoHS3 and REACH unaffected, with a Moisture Sensitivity Level (MSL) of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.13 | $1.13 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.95 | $0.95 |
| 2,000+ | $0.92 | $0.92 |
| 4,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 15 positions.
The pitch is 0.50mm (0.020").
It is surface mount, right angle.
The voltage rating is 50V.
The operating temperature range is -40°C to 105°C.
Yes, it features a rotary lock.
