| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,166 pcs
|
2166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

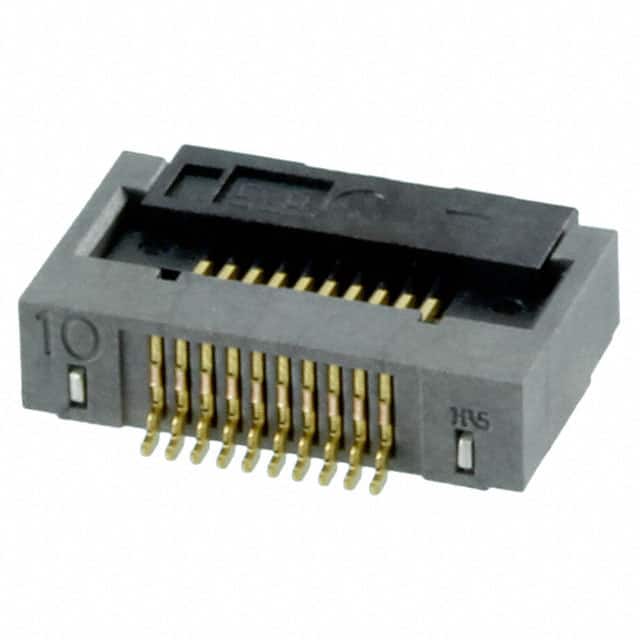

The Hirose FH28-10S-0.5SH(05) is a 10-position FFC/FPC connector featuring a 0.5mm pitch and a right-angle surface mount configuration. It is designed for use with tabbed FFC or FPC cables up to 0.30mm thick. The connector utilizes a Zero Insertion Force (ZIF) rotary lock mechanism to secure the cable, ensuring reliable contact without damaging the flex circuit.
This connector is rated for 50V and operates over a temperature range of -40°C to 105°C. The contacts are made of phosphor bronze with a gold finish, providing excellent conductivity and corrosion resistance. The housing and actuator are constructed from halogen-free Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
The FH28 series includes solder retention features for improved mechanical stability during assembly. The bottom contact configuration makes it suitable for various space-constrained applications requiring a low-profile, right-angle interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.13 | $1.13 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.95 | $0.95 |
| 2,000+ | $0.95 | $0.95 |
| 4,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 10 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
It is a surface mount, right angle connector.
It uses a rotary lock mechanism.
The operating temperature range is -40°C to 105°C.
The housing material has a UL94 V-0 flammability rating.
