| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
399 pcs
|
399 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

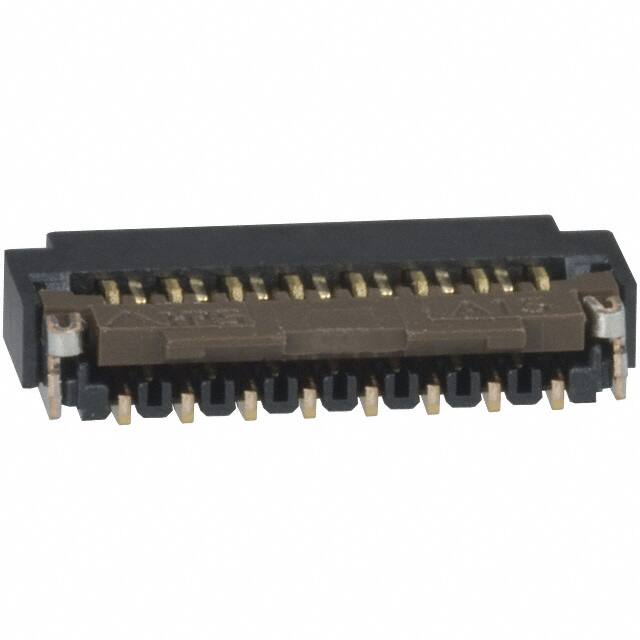

The FH26W-15S-0.3SHW(99) is a 15-position FPC connector from Hirose Electric's FH26W series. It features a 0.3mm pitch and a right-angle surface mount design with bottom contacts. The connector utilizes a zero insertion force (ZIF) flip lock mechanism for secure cable retention. Contacts are gold-plated phosphor bronze, and the housing is made of liquid crystal polymer (LCP) with a polyamide actuator. The connector is rated for 30V and operates over -55°C to 85°C. It accepts FPC cables with a thickness of 0.20mm and tapered ends. The height above board is 1.00mm. The material flammability rating is UL94 HB. This connector is suitable for applications requiring a compact, low-profile FPC interconnection with reliable ZIF locking.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.63 | $1.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
0.3mm.
30V.
Surface mount, right angle.
-55°C to 85°C.
Flip lock (ZIF).
Gold.
