| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,980 pcs
|
4980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

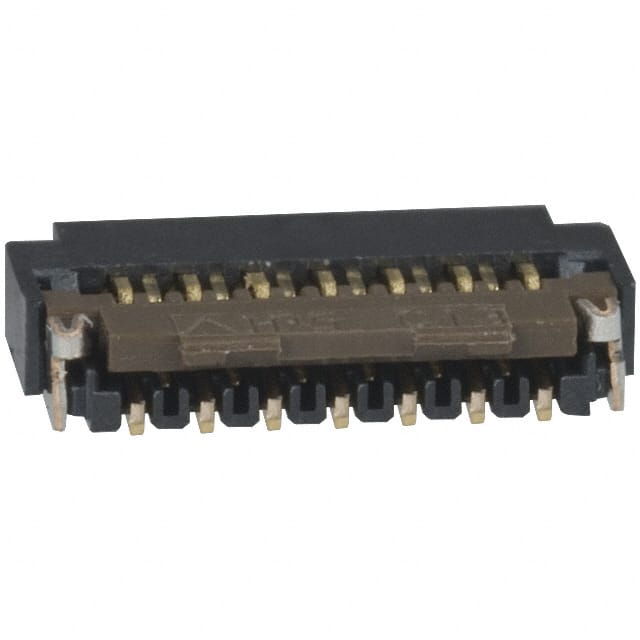

The Hirose Electric FH26W-13S-0.3SHW(05) is a surface mount, right angle FPC connector with 13 positions and a 0.3mm pitch. It features a zero insertion force (ZIF) flip lock mechanism for secure cable retention. The connector accepts tapered FPC cables with a thickness of 0.20mm. Contacts are gold-plated phosphor bronze, and the housing is made of liquid crystal polymer (LCP) with a UL94 HB flammability rating. The actuator is polyamide (nylon). This connector is rated for 30V and operates over a temperature range of -55°C to 85°C. The height above board is 1.00mm, making it suitable for compact designs. The bottom contact configuration allows for easy cable insertion. The part is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13 positions.
0.30mm (0.012 inches).
30V.
Surface mount, right angle.
-55°C to 85°C.
Flip lock (ZIF) mechanism.
Gold.
