| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

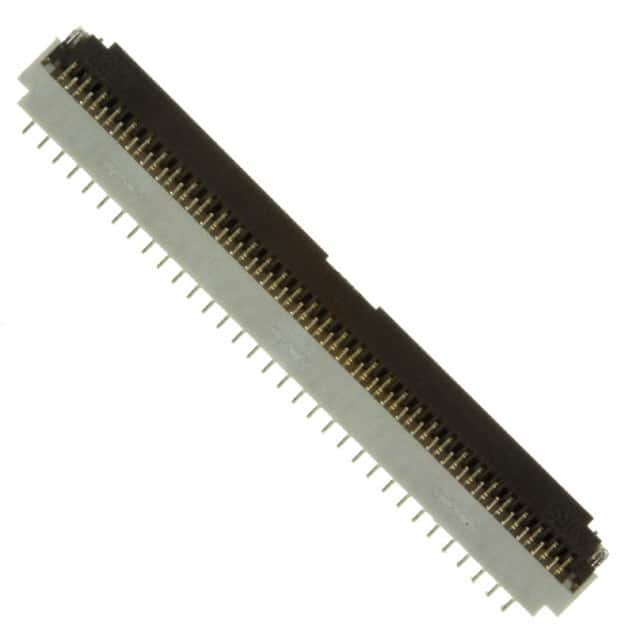

The Hirose FH26G-67S-0.3SHBW(05) is a 67-position FPC connector from the FH26G series, featuring a 0.3mm pitch and a surface mount, right-angle mounting configuration. It uses bottom contacts with gold plating over phosphor bronze for reliable signal integrity. The connector incorporates a zero insertion force (ZIF) flip lock mechanism for secure cable retention and easy mating. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is polyamide (PA) nylon. It is designed for FPC cables with a thickness of 0.20mm and a tapered end type. The operating temperature range is -55°C to 85°C, and the voltage rating is 30V.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.76 | $2.76 |
| 10+ | $2.35 | $2.35 |
| 25+ | $2.10 | $2.10 |
| 100+ | $2.00 | $2.00 |
| 250+ | $1.87 | $1.87 |
| 500+ | $1.79 | $1.79 |
| 1,000+ | $1.78 | $1.78 |
| 5,000+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 67 positions.
The pitch is 0.30mm (0.012 inches).
The voltage rating is 30V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 85°C.
It has a flip lock locking feature, which is a zero insertion force (ZIF) mechanism.
The height above board is 0.039 inches (1.00mm).
