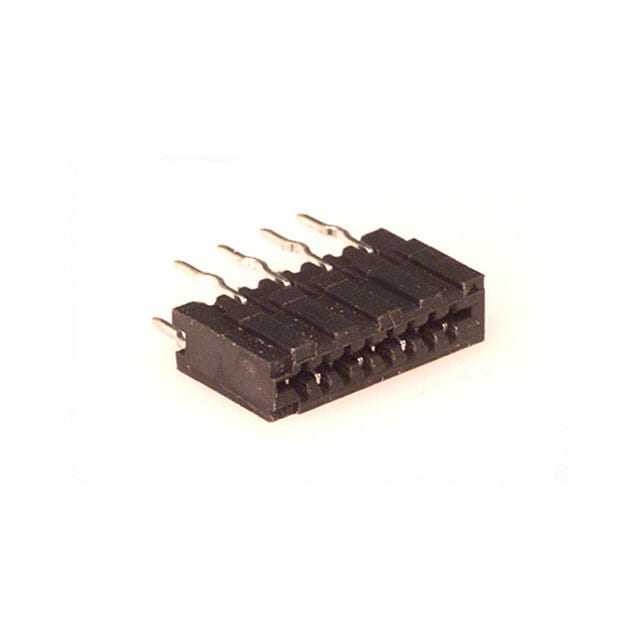

FH21-8S-1DSA Hirose FH21-8S-1DSA is a through hole FFC/FPC connector with 8 positions at 1mm pitch, featuring low insertion force (LIF) mechanism and kinked pin termination.
Mfr Part #:

FH21-8S-1DSA

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose FH21-8S-1DSA is a through hole FFC/FPC connector with 8 positions at 1mm pitch, featuring low insertion force (LIF) mechanism and kinked pin termination.
✓ Total Stock: 82 pcs
$ Price Range: $0.27

FH21-8S-1DSA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
82 pcs
On Request
82 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FH21-8S-1DSA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable End Type
Connector
Contact Finish
Contact Material
Contact Resistance
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Rated Current
Storage Temperature
Termination
Termination Style
Voltage Rating
View Similar Products (0)

FH21-8S-1DSA Description

Short technical summary and product information.

The FH21-8S-1DSA is a vertical FFC/FPC connector from Hirose Electric's FH21 series. It features 8 positions with a 1mm pitch and is designed for through hole mounting with kinked pin termination for secure soldering. The connector supports both FFC and FPC cables with a thickness of 0.30mm. It utilizes a low insertion force (LIF) mechanism for easy cable insertion and removal. Electrical ratings include 0.5A current, 50V voltage, contact resistance of 40mΩ, and insulation resistance of 500MΩ min. The operating temperature range is -30°C to +70°C. The housing is made of PBT with UL94 V-0 flammability rating, and contacts are phosphor bronze with solder plating. This connector is suitable for applications such as HDDs, printers, and LCD modules.

FH21-8S-1DSA Quick Information

Product Type: FFC/FPC Connector Assembly
Series: FH21
Canonical Name: Hirose FH21 Series FFC/FPC Connector, 8 Positions, 1mm Pitch, Through Hole, Vertical
Subcategory: Vertical, 2-Sided Contacts

FH21-8S-1DSA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FH21-8S-1DSA Estimated Pricing

Qty Low High
210+ $0.27 $0.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

FH21-8S-1DSA Features

  • 8 positions with 1mm pitch.
  • Low insertion force (LIF) mechanism.
  • Through hole mounting with kinked pin termination.
  • Rated for 0.5A and 50V.
  • Supports FFC/FPC thickness 0.30mm.

FH21-8S-1DSA Applications

  • Used in hard disk drives (HDDs).
  • Suitable for printers and fax machines.
  • Ideal for LCD modules and crystal liquid modules.
  • Applicable in consumer electronics requiring FFC/FPC connections.

FH21-8S-1DSA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FH21-8S-1DSA have?

8 positions.

What is the pitch of this connector?

1.00mm.

What is the current rating?

0.5A.

What is the voltage rating?

50V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-30°C to +70°C.

What is the contact resistance?

40mΩ max (measured at 100mA).
