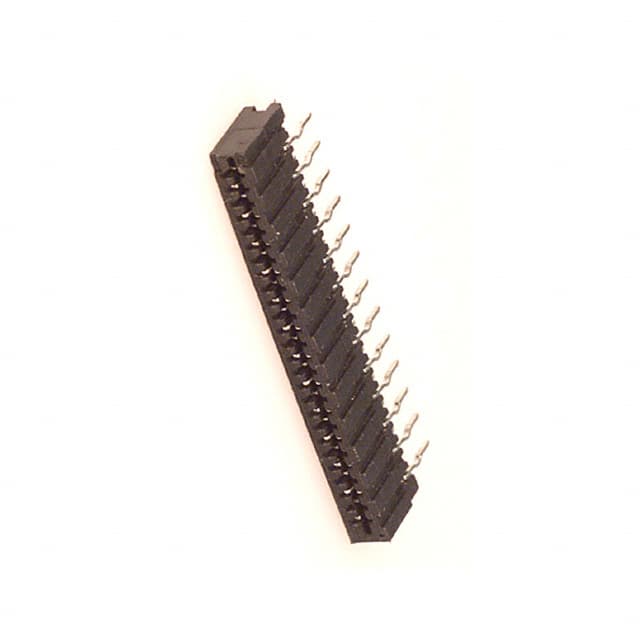

The Hirose FH21-26S-1DSA is a 26-position, 1mm pitch FPC/FFC connector designed for through-hole mounting with a vertical orientation. It features a low insertion force (LIF) mechanism for easy cable insertion and a kinked pin termination to prevent floating during soldering. The connector accepts FPC/FFC cables with a thickness of 0.30mm and has a straight cable end type.
Electrical specifications include a rated current of 0.5A, a voltage rating of 50V, a maximum contact resistance of 40mΩ, and a minimum insulation resistance of 500MΩ. The operating temperature range is -30°C to 70°C. The housing is made of Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, and contacts are phosphor bronze with solder plating.
This connector is suitable for applications such as HDDs, facsimiles, printers, and crystal liquid modules. Its dual-sided contact structure does not restrict the directionality of FPC and FFC conductors.
| Qty | Low | High |
|---|---|---|
| 80+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FH21-26S-1DSA has 26 positions.
The pitch is 1.00mm.
The rated current is 0.5A.
The voltage rating is 50V.
It uses through-hole mounting.
The operating temperature range is -30°C to 70°C.
The connector accepts FPC/FFC cables with a thickness of 0.30mm.
