FH21-20S-1DSA Hirose FH21-20S-1DSA is a 20-position, 1mm pitch FFC/FPC connector with through-hole mounting and vertical orientation.
Mfr Part #:

FH21-20S-1DSA

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose FH21-20S-1DSA is a 20-position, 1mm pitch FFC/FPC connector with through-hole mounting and vertical orientation.
✓ Total Stock: 12 pcs
$ Price Range: $0.52

FH21-20S-1DSA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FH21-20S-1DSA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable End Type
Connector
Contact Finish
Contact Material
Contact Resistance
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Rated Current
Storage Temperature
Termination
Termination Style
Voltage Rating
View Similar Products (0)

FH21-20S-1DSA Description

Short technical summary and product information.

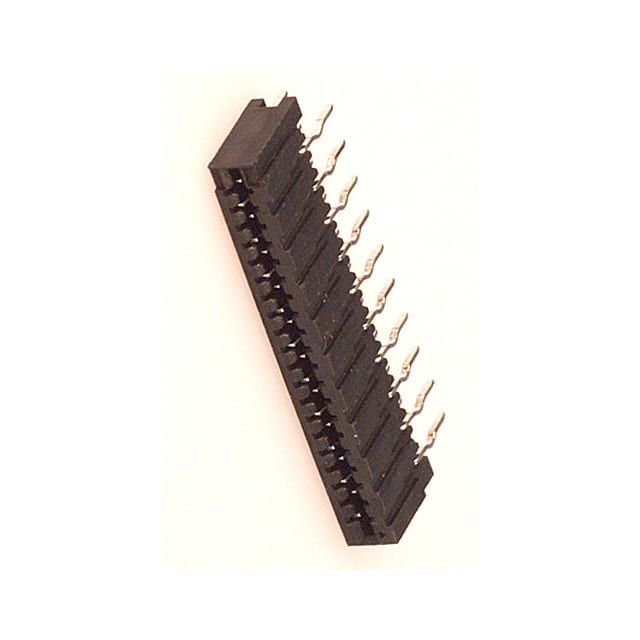

The Hirose FH21-20S-1DSA is a 20-position FFC/FPC connector from the FH21 series, featuring a 1mm pitch and through-hole mounting with kinked pins for secure soldering. The connector accepts 0.30mm thick FFC or FPC cables with straight cable end type and uses a low insertion force (LIF) mechanism for easy mating. Contacts are phosphor bronze with solder plating, and the housing is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.



Electrically, the connector is rated for 0.5A current and 50V AC voltage. It offers insulation resistance of 500MΩ minimum at 100V DC, withstand voltage of 150V AC for 1 minute, and contact resistance of 40mΩ maximum at 100mA. The operating temperature range is -30°C to 70°C.



This vertical connector with 2-sided contact structure does not restrict the direction of FPC/FFC conductors, making it suitable for applications such as HDDs, facsimiles, printers, and LCD modules. The LIF design enhances serviceability during assembly and maintenance.

FH21-20S-1DSA Quick Information

Product Type: FFC/FPC Connector Assembly
Series: FH21
Canonical Name: Hirose Electric FH21-20S-1DSA FFC/FPC Connector, 20 Positions, 1mm Pitch, Through Hole, Vertical
Subcategory: Vertical, 2-Sided Contacts

FH21-20S-1DSA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FH21-20S-1DSA Estimated Pricing

Qty Low High
100+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

FH21-20S-1DSA Features

  • 20 positions with 1mm pitch spacing.
  • Through-hole vertical mounting with kinked pins.
  • Low insertion force (LIF) mechanism.
  • Rated for 0.5A current and 50V voltage.
  • Accepts 0.30mm thick FFC or FPC cables.

FH21-20S-1DSA Applications

  • Suitable for HDD and printer connections.
  • Used in facsimile and LCD module assemblies.
  • Ideal for low insertion force applications.

FH21-20S-1DSA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FH21-20S-1DSA have?

20 positions.

What is the pitch of this connector?

1.00mm (0.039 inches).

What is the current rating?

0.5A.

What is the voltage rating?

50V AC.

What mounting type does this connector use?

Through hole with kinked pin termination.

What is the operating temperature range?

-30°C to 70°C.

What FPC/FFC thickness does it accept?

0.30mm.
