| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating |

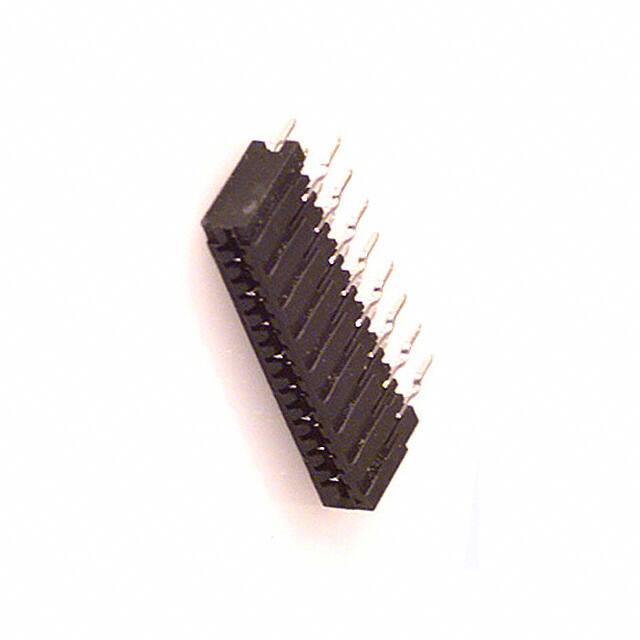

The Hirose Electric FH21-16S-1DSA is a 16 position, 1mm pitch FFC/FPC connector designed for vertical through hole mounting. It features a low insertion force (LIF) mechanism for easy cable insertion and a kinked pin termination that prevents connector floating during soldering. The contact structure on both sides accepts FPC and FFC conductors without restricting directionality.
Electrical ratings include a rated current of 0.5A and a rated voltage of 50V AC. Contact resistance is 40mΩ maximum measured at 100mA, insulation resistance is 500MΩ minimum at 100V DC, and the connector withstands 150V AC for 1 minute. The operating temperature range is -30°C to 70°C.
The housing is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with solder plating. The connector accepts FPC/FFC cables with a thickness of 0.30mm and has a height above board of 5.80mm.
| Qty | Low | High |
|---|---|---|
| 120+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FH21-16S-1DSA has 16 positions.
The pitch is 1.00mm.
The rated current is 0.5A.
The voltage rating is 50V AC.
It uses through hole mounting with kinked pin termination.
The operating temperature range is -30°C to 70°C.
The connector supports FPC/FFC thickness of 0.30mm.
