Mfr Part #:

FH21-16S-1DS

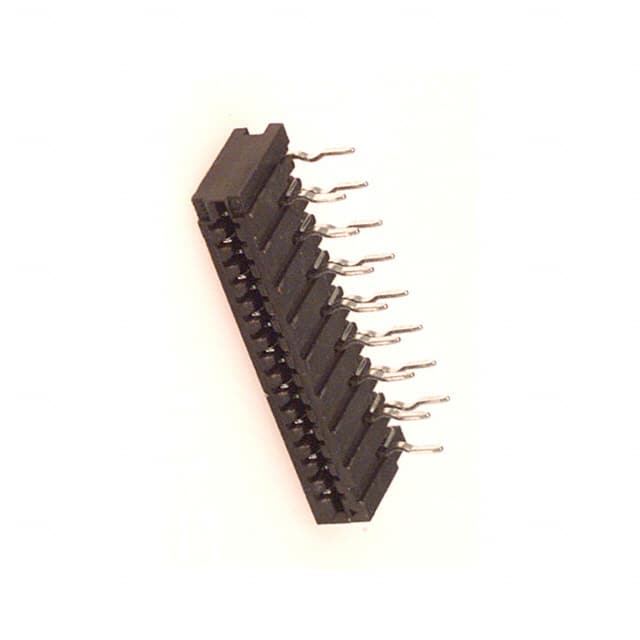

Hirose FH21-16S-1DS is a 16-position, 1mm pitch FFC/FPC connector with through-hole right-angle mounting. It features low insertion force (LIF) and kinked pins for secure soldering.

✓ Total Stock: 55 pcs

$ Price Range: $0.48

FH21-16S-1DS Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	55 pcs On Request	55 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FH21-16S-1DS Description

Short technical summary and product information.

The Hirose FH21-16S-1DS is a 16-position, 1.00mm pitch FFC/FPC connector designed for through-hole, right-angle mounting. It features a Low Insertion Force (LIF) mechanism for easy cable insertion and a kinked pin termination that prevents the connector from floating during soldering. The contact structure on both top and bottom sides accepts FFC or FPC cables with a thickness of 0.30mm, without restricting conductor direction.

Electrical ratings include a rated current of 0.5A and a rated voltage of 50V AC. Contact resistance is 40mΩ maximum (measured at 100mA, including FPC conductor resistance), insulation resistance is 500MΩ minimum at 100V DC, and the connector withstands 150V AC for 1 minute without breakdown. The housing is made of Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, and contacts are phosphor bronze with solder plating.

Operating temperature range is -30°C to 70°C. The FH21 series is suitable for applications such as hard disk drives, facsimile machines, printers, and liquid crystal display modules. This connector is supplied in a tube or tray packaging (standard package quantity is unverified).

FH21-16S-1DS Quick Information

Product Type: FFC/FPC Connector Assembly

Series: FH21

Canonical Name: Hirose FH21-16S-1DS 16 Position 1.00mm Pitch FFC/FPC Connector, Through Hole, Right Angle

Subcategory: Through Hole, Right Angle

FH21-16S-1DS Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FH21-16S-1DS Estimated Pricing

Qty	Low	High
120+	$0.48	$0.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

FH21-16S-1DS Features

Low insertion force (LIF) mechanism.
Kinked pins prevent soldering float.
16 positions with 1.00mm pitch.
Through-hole, right-angle mounting.
Contacts on both sides for FFC/FPC.

FH21-16S-1DS Applications

Used in hard disk drives (HDDs).
Suitable for facsimile machines.
For printers and LCD modules.
General FFC/FPC interconnect applications.

FH21-16S-1DS FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FH21-16S-1DS have?

16 positions.

What is the pitch of this connector?

1.00mm (0.039").

What is the rated current?

0.5A.

What is the voltage rating?

50V AC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-30°C to 70°C.

What is the contact resistance?

40mΩ maximum (measured at 100mA, including FPC conductor resistance).

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Hirose Electric
Cable End Type	Straight
Connector	Contacts, Top and Bottom
Contact Finish	Solder Plating
Contact Material	Phosphor Bronze
Contact Resistance	40mΩ
FFC, FCB Thickness	0.30mm
Features	Low Insertion Force (LIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.106" (2.70mm)
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Resistance	500MΩ
Lead Spacing	1.0 mm
Lead Style	Kinked Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Operating Temperature	-30°C ~ 70°C
Pitch	1.00mm (0.039")
Rated Current	0.5A
Storage Temperature	-10°C ~ 50°C
Termination	Kinked Pin
Termination Style	Kinked Pin
Voltage Rating	50V
