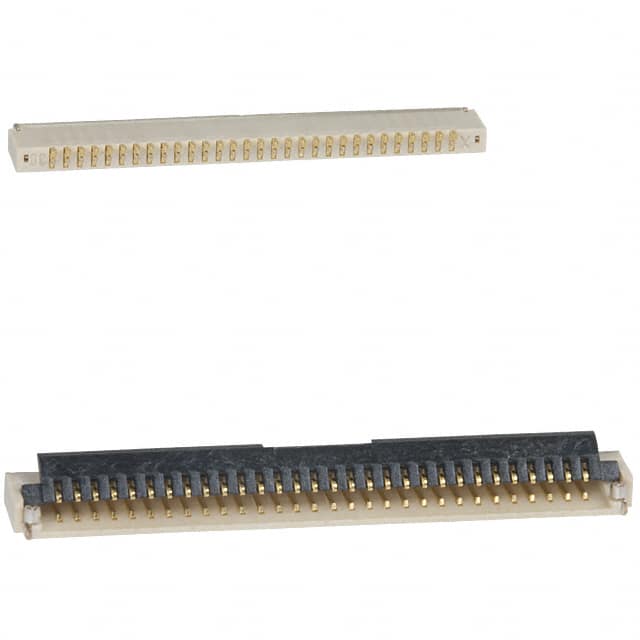

FH19SC-30S-0.5SH(99)

The FH19SC-30S-0.5SH(99) from Hirose Electric is a low-profile FPC/FFC connector from the FH19SC series. It features 30 positions with a 0.5mm pitch and a right angle surface mount design with bottom contacts. The connector has a height above board of 0.95mm and a width of 3mm, enabling high-density PCB layouts. It accepts FPC/FFC cables with a thickness of 0.30mm (tapered end) and supports zero insertion force (ZIF) operation via a flip lock actuator that provides tactile locking. The housing is made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold finish. Electrical ratings are 0.5A per contact (derate to 0.35A when all contacts are used) and 50V AC. Operating temperature range is -55°C to 85°C. The connector is packaged in tape and reel with a standard quantity of 5000 pieces, suitable for automated pick-and-place assembly. Features include solder retention for reliable board attachment.
