| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,135 pcs
|
4135 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

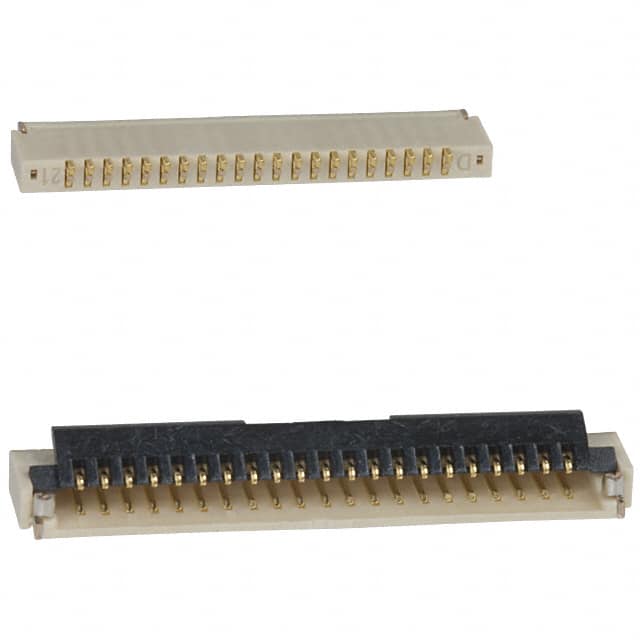

This is a 21-position FPC/FFC connector from Hirose Electric's FH19SC series. It features a 0.5mm pitch and a low profile height of 0.9mm above the board. The connector uses a surface mount, right angle orientation with solder termination.
The connector accepts FPC/FFC cables with a thickness of 0.3mm and features a flip lock actuator for secure ZIF (Zero Insertion Force) connection. The housing is made of halogen-free LCP with UL94 V-0 flammability rating, and contacts are phosphor bronze with gold plating.
Electrical ratings include 50V AC maximum voltage and 0.5A per contact current rating. Operating temperature range is -55°C to 85°C. The connector is packaged in tape and reel with 5000 pieces per reel, suitable for automated pick-and-place assembly.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
21 positions.
0.5 mm.
0.5 A maximum per contact.
50 V AC.
Surface mount, right angle.
-55°C to 85°C.
0.3 mm.
