| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Humidity Range | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

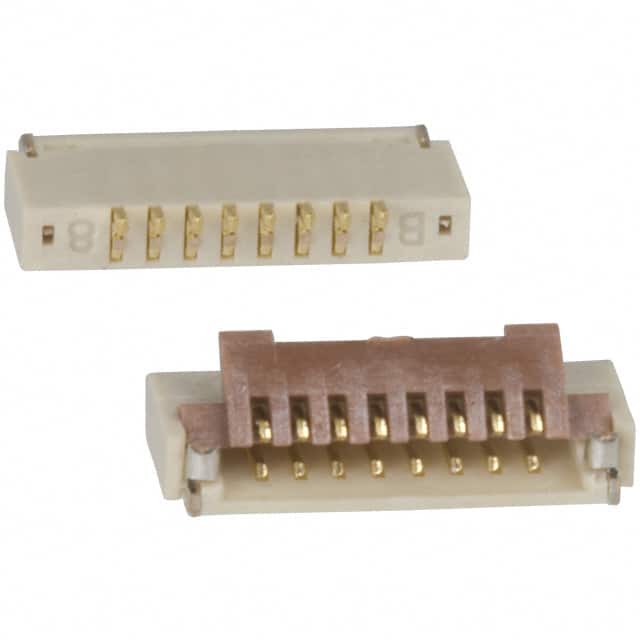

The Hirose FH19C-8S-0.5SH(10) is a low-profile 0.5mm pitch FFC/FPC connector from the FH19C series. It features 8 positions with a right angle surface mount termination and a flip lock actuator for easy insertion and reliable connection. The connector accepts 0.20mm thick FFC or FPC cables with a tapered end.
Electrical ratings include a current rating of 0.5A per contact and a voltage rating of 50V. The operating temperature range is -55°C to 85°C. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is LCP or PPS. Contacts are gold plated phosphor bronze.
The connector has a height above board of 0.88mm and includes solder retention features. It is supplied in tape and reel packaging with a standard quantity of 5000 pieces. The design allows conductive traces to run under the connector due to its enclosed bottom construction.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 8 positions.
0.5A per contact. When passing current through all contacts, use 70% of the rating.
50V.
Surface mount, right angle.
-55°C to 85°C.
0.20mm.
