| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
265 pcs
|
265 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

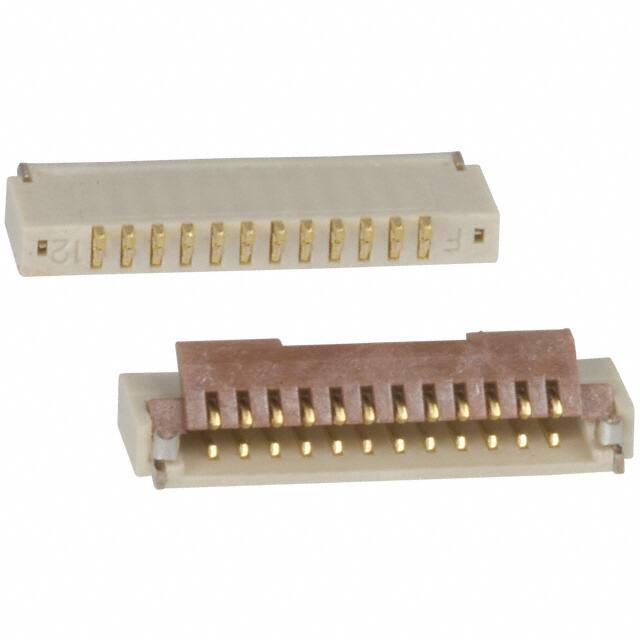

The FH19C-12S-0.5SH(99) is a 12-position, 0.5mm pitch FPC/FFC connector from Hirose Electric's FH19C series. This connector features a low-profile design with a height of 0.88mm above board and a width of 3mm, making it suitable for space-constrained applications. It utilizes a flip lock actuator for easy insertion and reliable connection, and it accepts 0.2mm thick FPC/FFC cables.
The connector is terminated via surface mount, right-angle orientation, with solder termination. It includes solder retention features and zero insertion force (ZIF) operation. The contacts are made of phosphor bronze with gold plating, ensuring reliable electrical performance. The housing is made of halogen-free liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Electrical ratings include a voltage rating of 50V and a current rating of 0.5A per contact. The operating temperature range is -55°C to 85°C, with storage temperature range of -10°C to 50°C and maximum operating humidity of 90%. The connector is packaged in tape and reel with 5000 pieces per reel, suitable for automated pick-and-place assembly.
This connector is designed for high-density PCB layouts and is commonly used in portable electronic devices, mobile phones, and other compact consumer electronics where reliable FPC/FFC connections are required.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
0.5mm.
0.5A.
50V.
Surface Mount, Right Angle.
-55°C to 85°C.
Flip Lock actuator.
