| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
65 pcs
|
65 pcs | On Request | 65 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

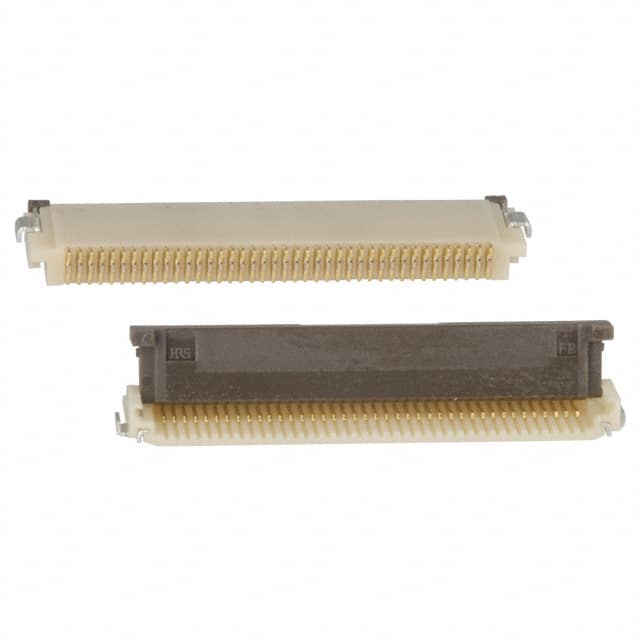

This FFC/FPC connector from Hirose Electric is designed for flexible flat cable assemblies. It features 40 positions with a 0.5mm pitch, enabling high-density interconnections. The connector uses bottom contact terminals with gold plating and phosphor bronze material for reliable electrical performance.
The housing is made of polyamide (nylon) with UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS). It includes a flip lock locking feature for secure cable retention and zero insertion force (ZIF) operation. The mounting type is surface mount, right angle, with solder termination. Height above board is 2.40mm.
Electrical ratings include 50V voltage rating and operating temperature range -40°C to 85°C. It is suitable for applications requiring compact and reliable interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.68 | $2.68 |
| 10+ | $2.28 | $2.28 |
| 25+ | $2.04 | $2.04 |
| 100+ | $1.94 | $1.94 |
| 250+ | $1.78 | $1.78 |
| 500+ | $1.69 | $1.69 |
| 1,000+ | $1.56 | $1.56 |
| 2,000+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.50mm (0.020 inch).
50V.
Surface mount, right angle.
Gold.
-40°C to 85°C.
Yes, flip lock with ZIF.
