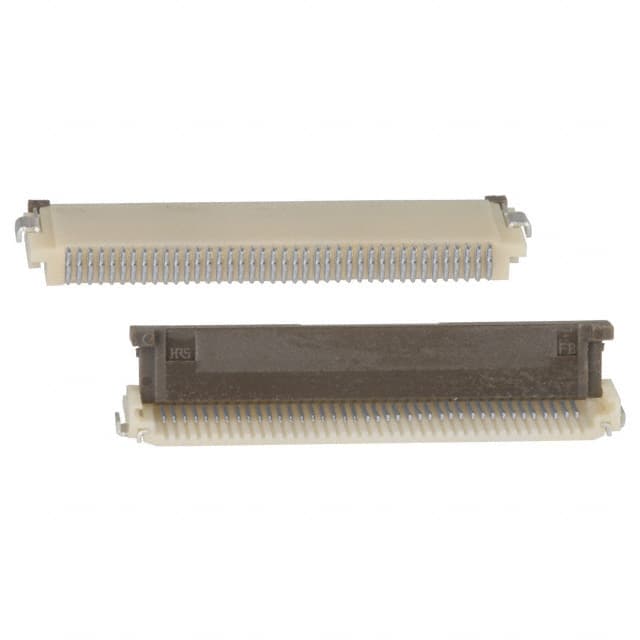

FH12S-40S-0.5SH The FH12S-40S-0.5SH is a 40-position, 0.5mm pitch FFC/FPC connector from Hirose Electric. It features bottom contacts, right-angle surface mount termination, and a flip-lock actuator.
Mfr Part #:

FH12S-40S-0.5SH

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
The FH12S-40S-0.5SH is a 40-position, 0.5mm pitch FFC/FPC connector from Hirose Electric. It features bottom contacts, right-angle surface mount termination, and a flip-lock actuator.
✓ Total Stock: 200 pcs
$ Price Range: $1.20

FH12S-40S-0.5SH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FH12S-40S-0.5SH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Current Rating
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Storage Temperature
Termination
Termination Style
Voltage Rating
View Similar Products (0)

FH12S-40S-0.5SH Description

Short technical summary and product information.

The FH12S-40S-0.5SH is a 40-position, 0.5mm pitch FFC/FPC connector from Hirose Electric, part of the FH12 series. It features bottom contacts for compact layout, right-angle surface mount termination, and a flip-lock actuator for secure connection. The connector is rated for 0.4A current and 50V voltage, with an operating temperature range of -40°C to +70°C per the datasheet. Contacts are phosphor bronze with tin-lead finish, housing is polyamide (PA) with UL94 V-0 flammability rating, and actuator is polyphenylene sulfide (PPS). The zero insertion force (ZIF) design and flip-lock mechanism ease assembly and ensure reliability. Typical applications include notebook computers, printers, digital cameras, and other compact devices for interconnecting main boards with LCDs, HDDs, or similar modules.

FH12S-40S-0.5SH Quick Information

Product Type: FFC/FPC Connector Assembly
Series: FH12
Canonical Name: FFC/FPC Connector, 40 Positions, 0.5mm Pitch, Bottom Contact, Right Angle, Surface Mount
Subcategory: Bottom Contact, Right Angle, SMD

FH12S-40S-0.5SH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected

FH12S-40S-0.5SH Estimated Pricing

Qty Low High
2,000+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

FH12S-40S-0.5SH Features

  • 40 positions with 0.50mm pitch.
  • Flip-lock actuator ensures secure mating.
  • Bottom contacts for compact layout.
  • Rated 0.4A current, 50V voltage.
  • Surface mount, right angle termination.

FH12S-40S-0.5SH Applications

  • Used in notebook computers and printers.
  • Interconnects LCD and main board.
  • Suitable for digital cameras and PDAs.
  • Ideal for compact consumer electronics.
  • Connects FFC/FPC in various devices.

FH12S-40S-0.5SH FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FH12S-40S-0.5SH have?

40 positions

What is the pitch of this connector?

0.50mm

What is the current rating?

0.4A

What is the voltage rating?

50V

What is the mounting type?

Surface mount, right angle

What is the operating temperature range?

-40°C to +70°C

What is the contact material?

Phosphor bronze
