| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

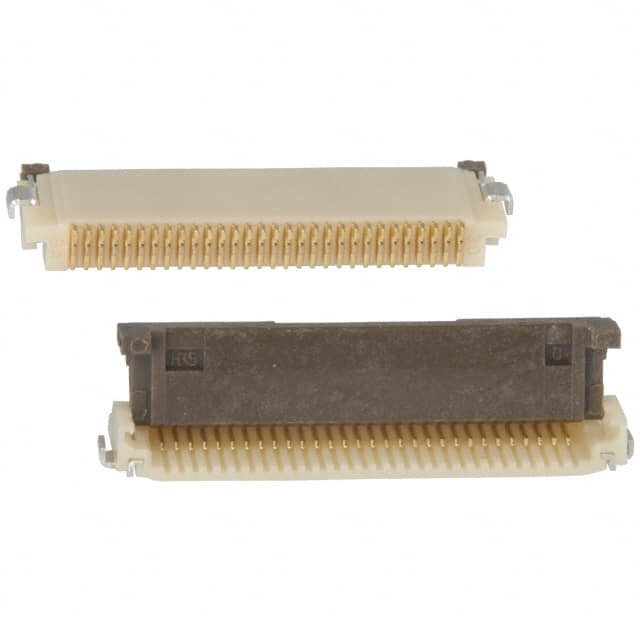

The Hirose Electric FH12S-30S-0.5SH(55) is a 30-position FFC/FPC connector featuring a 0.50mm pitch and right angle surface mount orientation. It is designed for use with 0.30mm thick flat flexible cables and accepts straight cable end types. The connector employs a flip lock zero insertion force (ZIF) mechanism for secure cable retention without damaging the contacts.
Electrical specifications include a 50V voltage rating. The connector is rated for an operating temperature range of -40°C to 85°C. Contacts are made of phosphor bronze with a gold finish, ensuring reliable signal integrity. The housing is constructed from polyamide (PA) nylon, and the actuator is made from polyphenylene sulfide (PPS).
The connector is terminated via solder and is designed for surface mount assembly. It has a height above board of 2.40mm. The material flammability rating is UL94 V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.69 | $1.69 |
| 100+ | $1.61 | $1.61 |
| 250+ | $1.48 | $1.48 |
| 500+ | $1.40 | $1.40 |
| 1,000+ | $1.29 | $1.29 |
| 2,000+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.50mm.
50V.
-40°C to 85°C.
Surface mount, right angle.
Flip lock (ZIF).
