| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

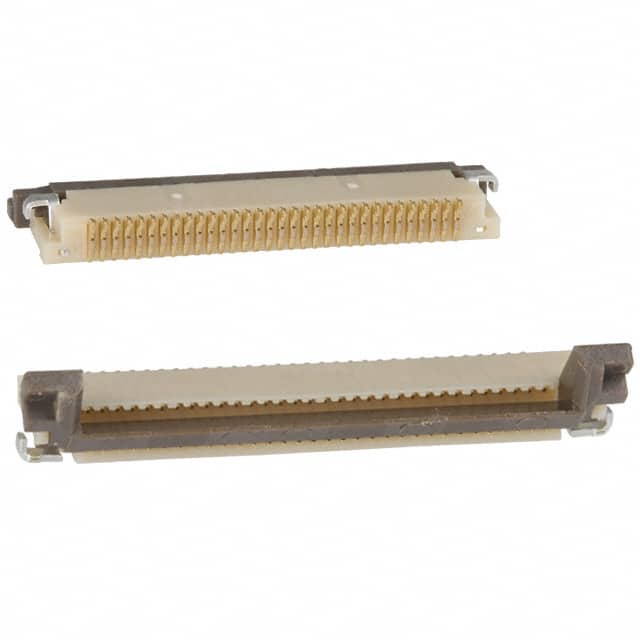

The Hirose FH12A-32S-0.5SH(55) is a 32-position FFC/FPC connector from the FH12A series. It features a 0.5mm pitch, top contact design, and is mounted via surface mount (SMD) with right-angle orientation. The connector accepts FFC and FPC cables with a straight end type and a maximum thickness of 0.30mm.
Mechanically, the connector employs a flip-lock actuator for easy cable insertion and secure retention. Electrical rating is 50V, with an operating temperature range of -40°C to 85°C. Contacts are gold-plated phosphor bronze for reliable conductivity, and the housing is made of 94V-0 rated polyamide with a polyphenylene sulfide (PPS) actuator. The height above board is 2.00mm.
This ZIF (zero insertion force) connector is ideal for applications requiring compact, high-density interconnect solutions, such as in portable electronics, display modules, and industrial controls. The right-angle SMT package enables space-saving designs on crowded PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.75 | $1.75 |
| 25+ | $1.56 | $1.56 |
| 100+ | $1.49 | $1.49 |
| 250+ | $1.39 | $1.39 |
| 500+ | $1.35 | $1.35 |
| 1,000+ | $1.33 | $1.33 |
| 2,000+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions.
0.5mm.
50V.
Surface mount, right angle.
FFC and FPC cables with a straight end.
Yes, it has a flip-lock ZIF mechanism.
-40°C to 85°C.
