| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

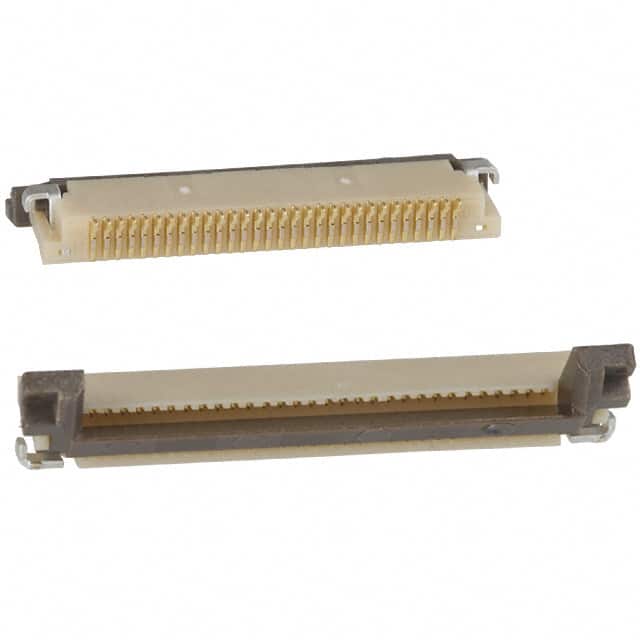

The FH12A-30S-0.5SH(55) is a 30-position, 0.5mm pitch FFC/FPC connector from Hirose Electric. It features a right-angle surface mount configuration with top contact, making it suitable for compact PCB layouts where space is limited. The connector uses a flip lock actuator for secure cable retention and a Zero Insertion Force (ZIF) design for easy insertion and removal of the flat flexible cable.
Electrical specifications include a voltage rating of 50V and an operating temperature range of -40°C to 85°C. The housing is made of polyamide (PA) nylon, and the actuator is polyphenylene sulfide (PPS), both with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a gold finish, ensuring reliable conductivity and corrosion resistance.
This connector is designed for FFC and FPC cables with a thickness of 0.30mm. The mounting type is surface mount with solder termination, and the height above board is 2.00mm. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.32 | $2.32 |
| 10+ | $1.98 | $1.98 |
| 25+ | $1.77 | $1.77 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.58 | $1.58 |
| 500+ | $1.50 | $1.50 |
| 1,000+ | $1.43 | $1.43 |
| 2,000+ | $1.35 | $1.35 |
| 4,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.5mm.
50V.
Surface mount, right angle.
-40°C to 85°C.
Flip lock.
Gold.
