| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

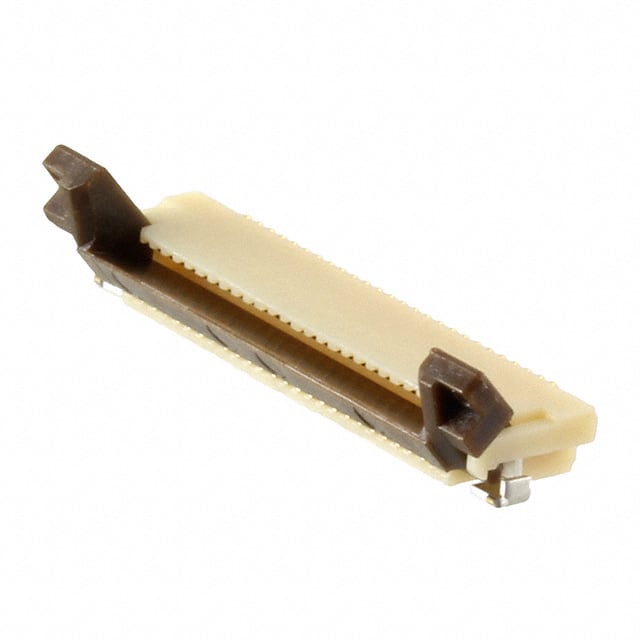

The Hirose Electric FH12A-26S-0.5SH(55) is a 26-position FFC/FPC connector with a 0.5mm pitch, designed for surface mount right-angle mounting. It features top-side contacts and a zero insertion force (ZIF) flip lock mechanism for secure cable retention. The contacts are gold-plated phosphor bronze, ensuring reliable electrical performance. The housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS).
This connector is rated for 50V DC and operates over a temperature range of -40°C to 85°C. It accepts FFC/FPC cables with a thickness of 0.3mm and straight cable ends. The compact design with a height above board of 2.0mm makes it suitable for space-constrained applications.
Typical applications include consumer electronics, automotive infotainment, industrial controls, and any high-density interconnect requiring a reliable, low-profile connection. The ZIF flip lock simplifies assembly and reduces insertion force, extending connector life.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.85 | $1.85 |
| 10+ | $1.58 | $1.58 |
| 25+ | $1.41 | $1.41 |
| 100+ | $1.34 | $1.34 |
| 250+ | $1.26 | $1.26 |
| 500+ | $1.24 | $1.24 |
| 2,000+ | $1.17 | $1.17 |
| 4,000+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
0.5mm.
50V.
Surface mount, right angle.
-40°C to 85°C.
Gold.
Flip lock (ZIF).
