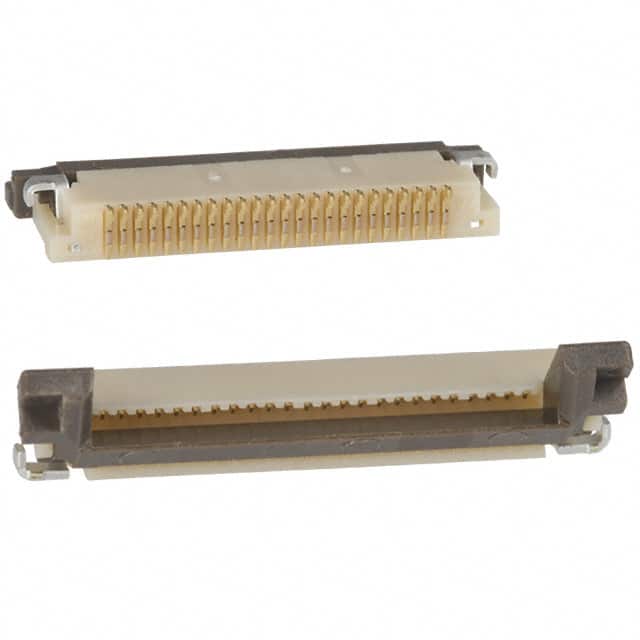

The FH12A-24S-0.5SH(55) is a 24-position, 0.5mm pitch FFC/FPC connector from Hirose Electric. It features a top contact design and is offered in a surface mount, right angle configuration. The connector utilizes a flip lock actuator for secure cable retention and supports Zero Insertion Force (ZIF) insertion.
The connector is rated for 50V operation and can operate over a temperature range of -40°C to 85°C. It accepts FFC or FPC cables with a thickness of 0.30mm and a straight cable end type. The height above board is 2.00mm.
Construction materials include a phosphor bronze contact with gold finish, a polyphenylene sulfide (PPS) actuator, and a polyamide (PA) nylon housing. The housing material has a UL94 V-0 flammability rating. Termination is via solder.
This connector is suitable for various applications requiring compact and reliable flexible circuit connections. Its ZIF feature and flip lock actuator simplify assembly and ensure reliable contact.
